SUNTEK SDK
Unified SDK interface for easy development and integration.
Compact self-service kiosk for ordering, checkout, and front-desk service.
The SUNTEK SK1-15 is a 15.6-inch mini self-service kiosk designed for compact retail counters, restaurant ordering areas, front-desk service points, and self-checkout projects. It integrates a 1D/2D barcode scanner, an 80mm thermal printer with auto-cutter, NFC payment support, a POS holder, and flexible desktop, wall-mounted, or floor-stand deployment in one compact kiosk structure. It is also SoftPOS-ready for projects that require more flexible digital payment workflows.
Watch the SUNTEK SK1-15 15.6-inch mini self-service kiosk in action and see how its compact desktop design supports ordering, registration, ticketing, checkout, and payment-related workflows.
The SUNTEK SK1-15 can be configured with Android 14 and the Rockchip RK3576 octa-core platform, combining up to 2.2GHz CPU performance with a 6 TOPS NPU for responsive self-service interaction, local AI-assisted workflows, and stable commercial kiosk operation.
This processing architecture helps software teams deploy ordering, checkout, registration, ticketing, and payment applications on a modern Android kiosk platform while keeping the terminal compact for countertop, wall-mounted, or floor-standing installation.
SK1-15 supports desktop, wall-mounted, and floor-stand installation options, allowing project teams to use the same compact kiosk hardware across countertop checkout, wall-mounted ordering, front-desk registration, and slim floor-standing service scenarios.
Our sales specialist will contact you within 24 hours.
SUNTEK SK1-15 supports tailored modular integration to match your specific needs—unleashing versatile functionality and a long-lasting, adaptable lifespan.
With an optional NFC module and compatible Android configuration, the SK1-15 can support SoftPOS deployment for contactless payment applications. Final compatibility depends on the selected SoftPOS solution and local certification requirements.
Built-in digital audio speaker ensures clear communication and effective self-service guidance.
SUNTEK SK1-15 features a minimalist design with a premium Aluminum body, ensuring structural stability and delivering a durable, modern aesthetic.

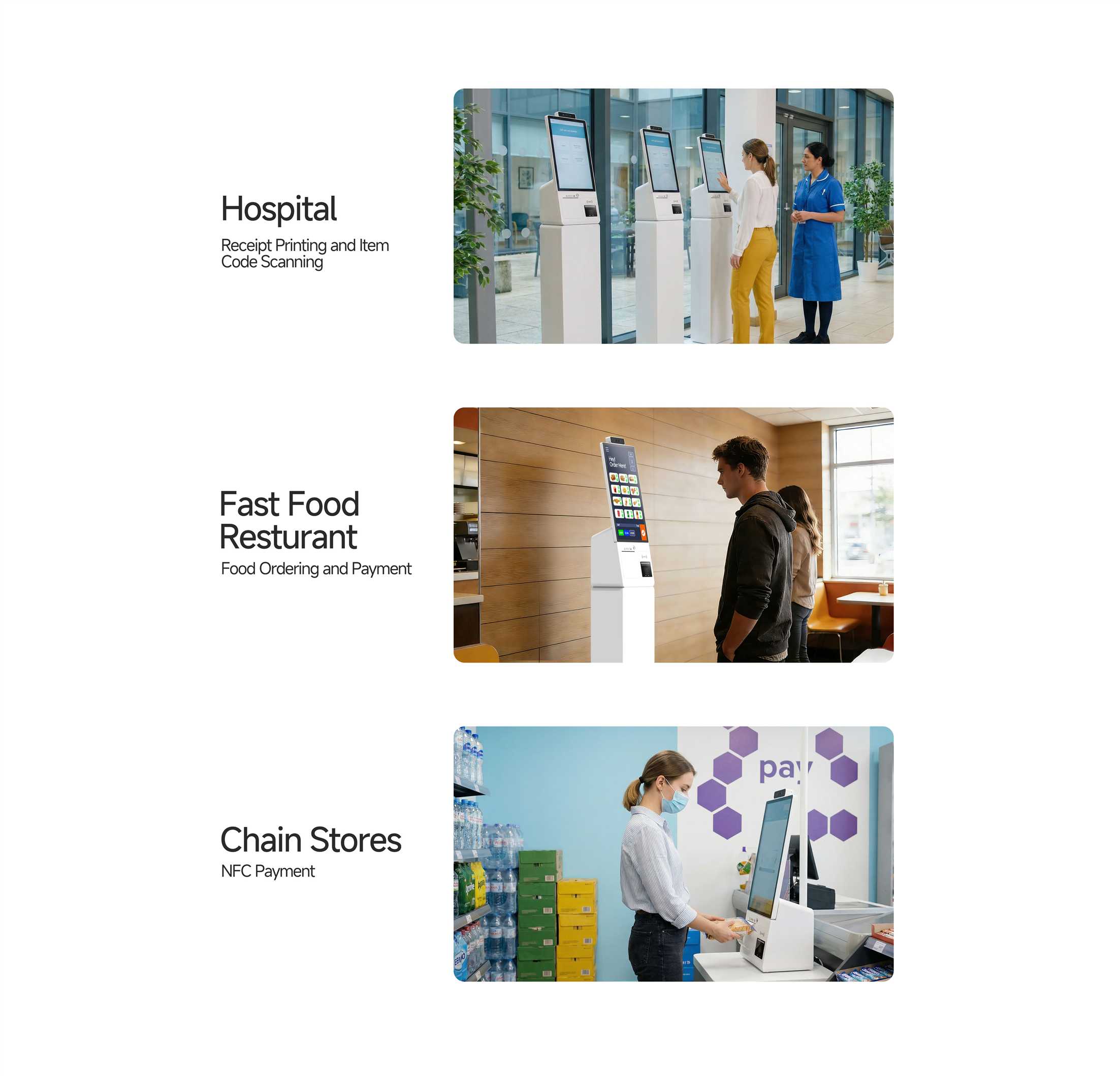

From queue management in hospitals to self-ordering in restaurants and NFC payments in chain stores, our mini self-service kiosk streamlines operations and elevates the customer journey across all industries.
Perfect for chain stores with limited space. This mini self-service kiosk supports quick NFC and Softpos payments, enabling a faster self-checkout process and improving customer satisfaction.
Boost your revenue with intuitive ordering. SUNTEK mini self-service kiosk SK1-15 provides a seamless interface for customers to browse menus, customize meals, and pay instantly in any high-traffic restaurant.
Enhance hospital efficiency with the SK1-15. This mini self-service kiosk handles receipt printing and medical code scanning, reducing wait times and allowing staff to focus on patient care.

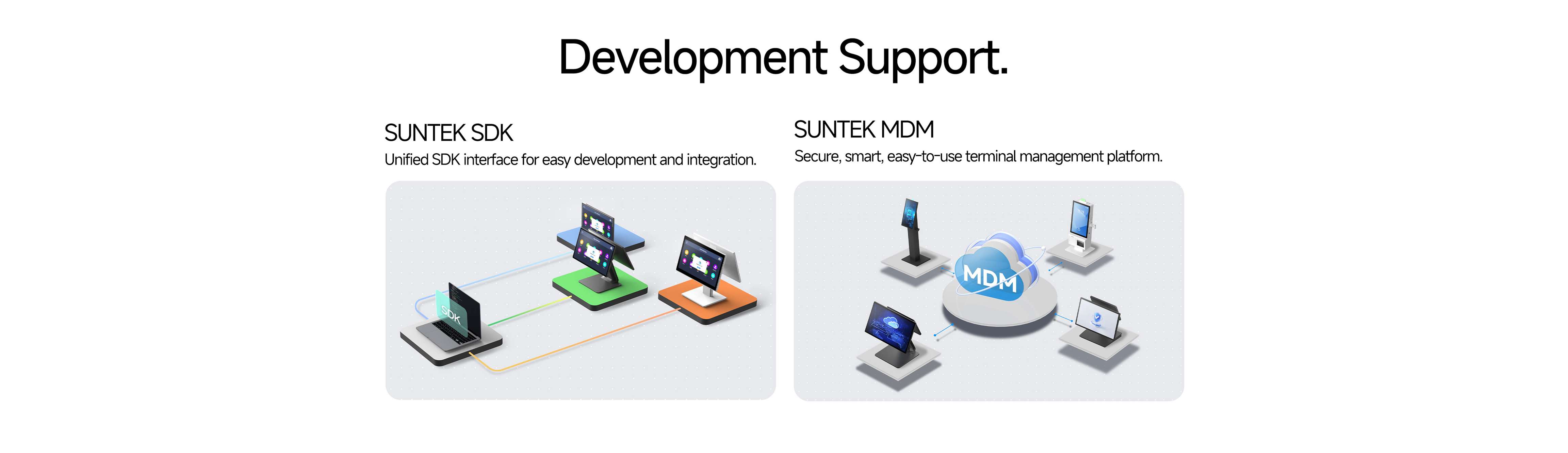

Unified SDK interface for easy development and integration.
Secure, smart, easy-to-use terminal management platform.
SUNTEK SK1-15 is available with Android and Windows system options, supporting a 15.6-inch touchscreen, built-in receipt printer, QR scanner, optional payment terminal holder, NFC, MSR, MDM, and flexible desktop, wall-mounted, or floor-standing installation.
| Item | SK1-15 Android Version | SK1-15 Windows Version |
|---|---|---|
| OS | Android 14 | Windows 10 |
| Processor | RK3576, Octa-Core 2.2GHz |
J6412; i3 or i5 Optional |
| Memory | 4GB RAM + 64GB ROM |
4GB RAM + 128GB SSD; 8GB RAM + 256GB SSD Optional; 16GB RAM + 512GB SSD Optional |
| Communications |
Wi-Fi: Dual-band 2.4GHz + 5GHz; Bluetooth: 5.4; Ethernet: 10M / 100M / 1000M |
Ethernet: 10M / 100M / 1000M; Wi-Fi: Dual-band 2.4GHz + 5GHz & Bluetooth 5.4 Optional |
| Rich Ports | 1 × DC, 2 × USB, 1 × RJ45 |
4 × USB, 1 × RJ45, 1 × HDMI, 1 × DC, 1 × VGA, 1 × Line in, 1 × Line out |
| Display | 15.6-inch Touchscreen | 15.6-inch Touchscreen |
| Touch | 10-Point G+G Touch | 10-Point G+G Touch |
| Printer | 80mm printer with cutter, print speed 160mm/s max | 80mm Thermal Printer with Auto Cutter, up to 160mm/s |
| QR Scanner | All common 1D and 2D codes | All common 1D and 2D codes |
| Holder | Payment terminal holder, beside the screen Optional | Payment terminal holder, beside the screen Optional |
| NFC | ISO14443 Type A/B, Mifare Optional | ISO14443 Type A/B, Mifare Optional |
| MSR | ISO7812, AAMVA, JIS-2 and others, beside the device Optional | ISO7812, AAMVA, JIS-2 and others, beside the device Optional |
| Audio | Digital Audio Speaker | Digital Audio Speaker |
| Installation |
Desktop; Wall-mounted; Floor-standing Optional |
Desktop; Wall-mounted; Floor-standing Optional |
| Power | DC 12V / 7A | DC 12V / 7A |
| Dimensions | 346(L) × 222(W) × 543(H) mm | 346(L) × 222(W) × 543(H) mm |
| Operation Environment |
Working temperature: 0°C–45°C; Operation humidity: 20%–80% |
Working temperature: 0°C–45°C; Operation humidity: 20%–80% |
| Storage Environment |
Storage temperature: -10°C–50°C; Storage humidity: 20%–80% |
Storage temperature: -10°C–50°C; Storage humidity: 20%–80% |
| MDM | Mobile Device Management Optional | Mobile Device Management Optional |
Android 14
RK3576, Octa-Core 2.2GHz
4GB RAM + 64GB ROM
Wi-Fi: Dual-band 2.4GHz + 5GHz;
Bluetooth: 5.4;
Ethernet: 10M / 100M / 1000M
1 × DC, 2 × USB, 1 × RJ45
15.6-inch Touchscreen
10-Point G+G Touch
880mm Thermal Printer with Auto Cutter, up to 160mm/s
All common 1D and 2D codes
Payment terminal holder, beside the screen Optional
ISO14443 Type A/B, Mifare Optional
ISO7812, AAMVA, JIS-2 and others, beside the device Optional
Digital Audio Speaker
Desktop;
Wall-mounted;
Floor-standing Optional
DC 12V / 7A
346(L) × 222(W) × 543(H) mm
Working temperature: 0°C–45°C;
Operation humidity: 20%–80%
Storage temperature: -10°C–50°C;
Storage humidity: 20%–80%
Mobile Device Management Optional
Windows 10
J6412;
i3 or i5 Optional
4GB RAM + 128GB SSD;
8GB RAM + 256GB SSD Optional;
16GB RAM + 512GB SSD Optional
Ethernet: 10M / 100M / 1000M;
Wi-Fi: Dual-band 2.4GHz + 5GHz & Bluetooth 5.4 Optional
4 × USB, 1 × RJ45, 1 × HDMI, 1 × DC, 1 × VGA,
1 × Line in, 1 × Line out
15.6-inch Touchscreen
10-Point G+G Touch
80mm printer with cutter, print speed 160mm/s max
All common 1D and 2D codes
Payment terminal holder, beside the screen Optional
ISO14443 Type A/B, Mifare Optional
ISO7812, AAMVA, JIS-2 and others, beside the device Optional
Digital Audio Speaker
Desktop;
Wall-mounted;
Floor-standing Optional
DC 12V / 7A
346(L) × 222(W) × 543(H) mm
Working temperature: 0°C–45°C;
Operation humidity: 20%–80%
Storage temperature: -10°C–50°C;
Storage humidity: 20%–80%
Mobile Device Management Optional
* Optional. Product specifications on this page are for reference only, and the actual product shall prevail.
