Standard 21.5-inch modular self-service kiosk hardware.
SUNTEK SK1 is a standard 21.5-inch modular self-service kiosk designed for ordering, checkout, ticketing, registration, information inquiry, and payment-related workflows. It supports Android and Windows system options, flexible installation methods, an 80mm thermal printer, 1D / 2D barcode scanner, optional NFC, optional MSR, and OEM / ODM hardware customization for commercial kiosk projects.

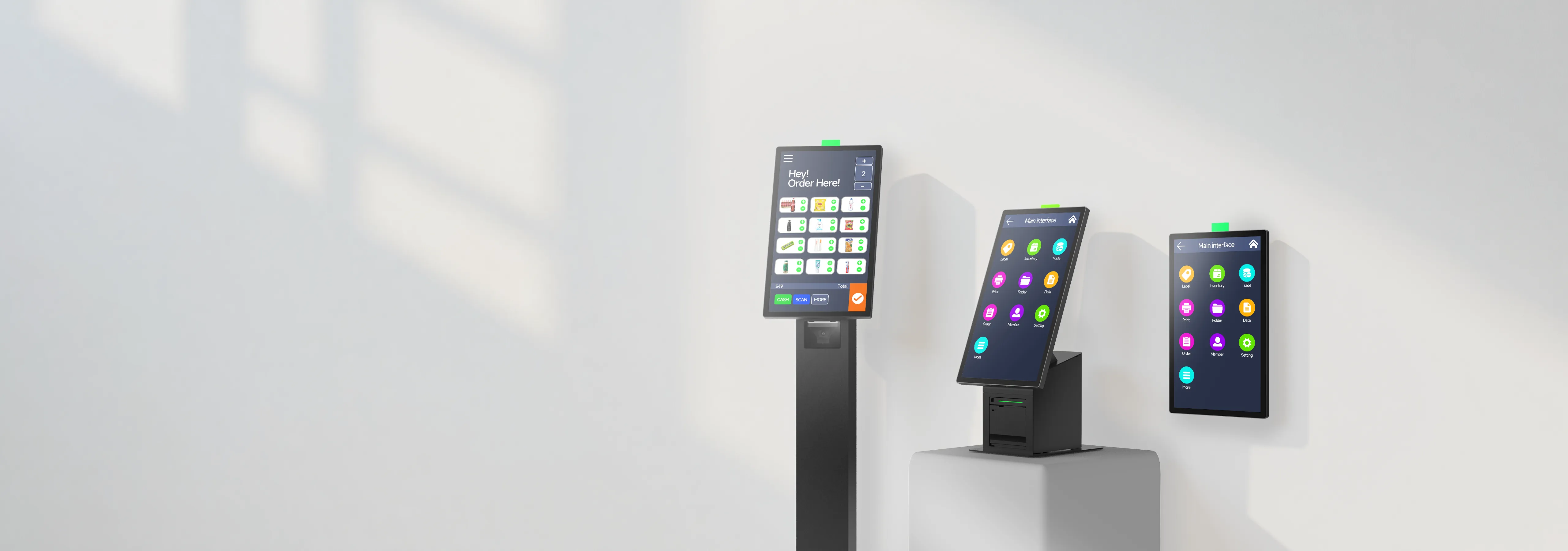

SK1 supports wall-mounted, desktop, and floor-standing installation methods, making it suitable for different self-service kiosk deployment layouts. Whether used for counter service, lobby check-in, restaurant ordering, or retail checkout, SK1 provides a flexible 21.5-inch kiosk hardware platform for commercial projects.

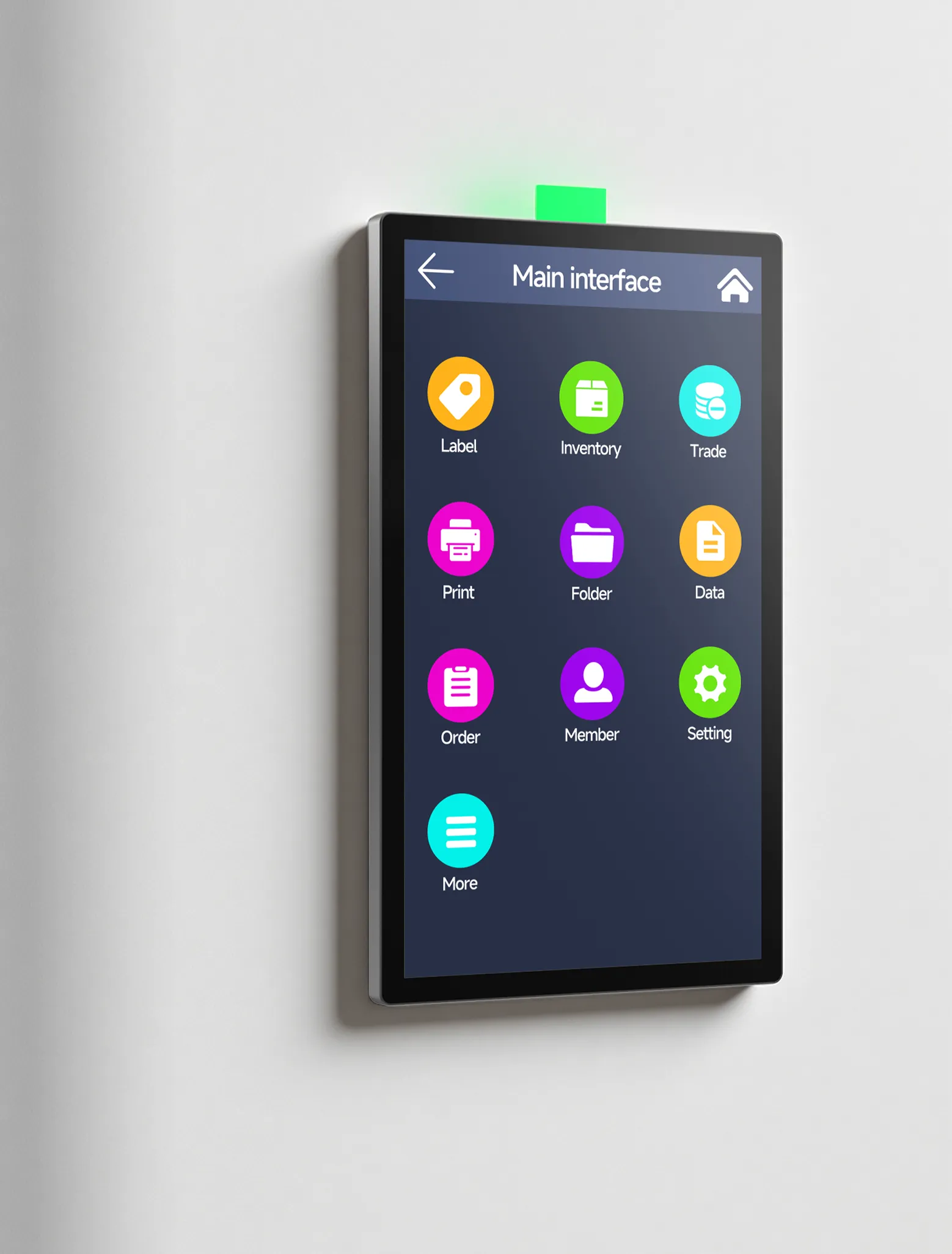

Space-saving self-service kiosk installation for corridors, service counters, public areas, and information inquiry points.

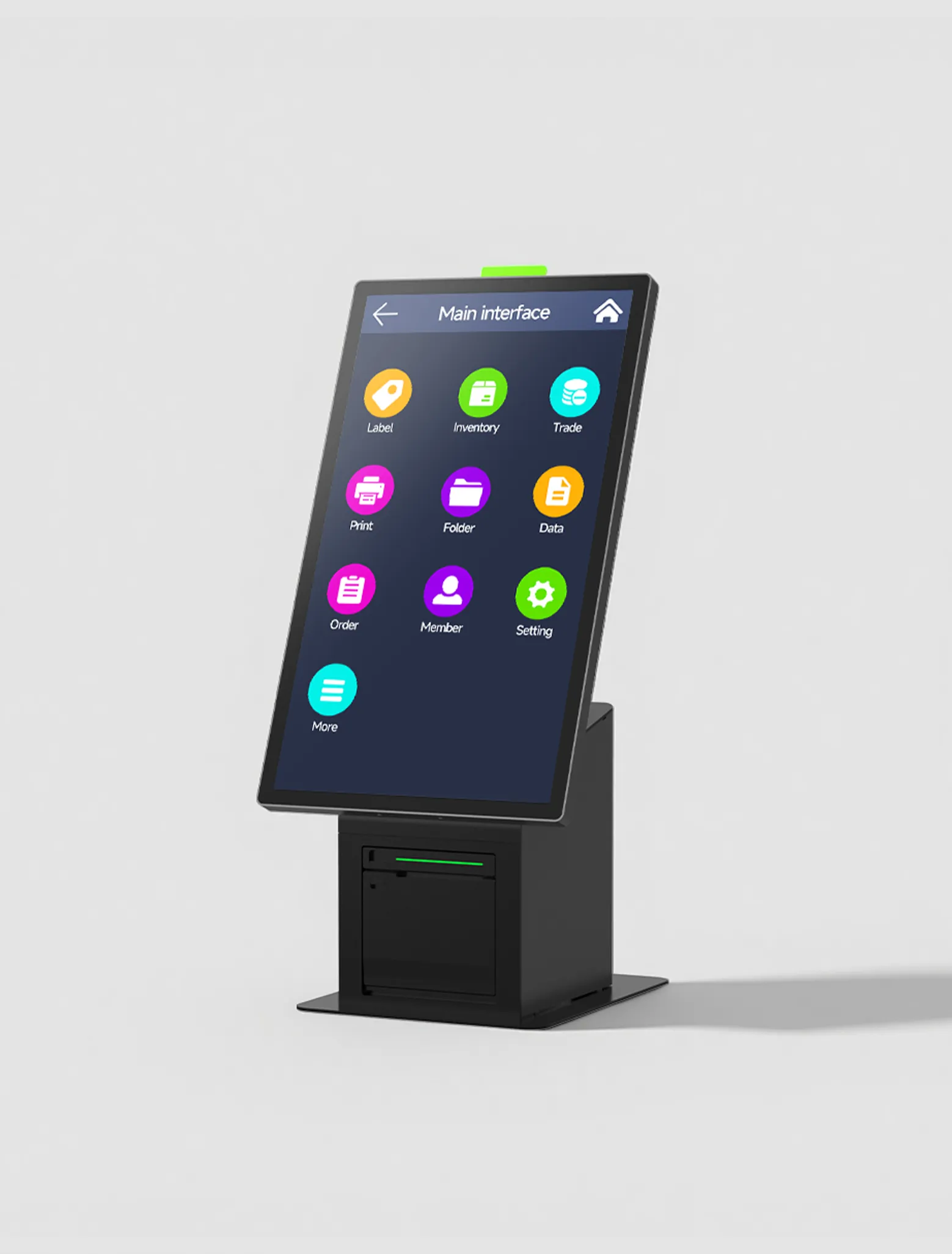

Compact countertop deployment for restaurants, front desks, reception areas, retail checkout, and registration workflows.

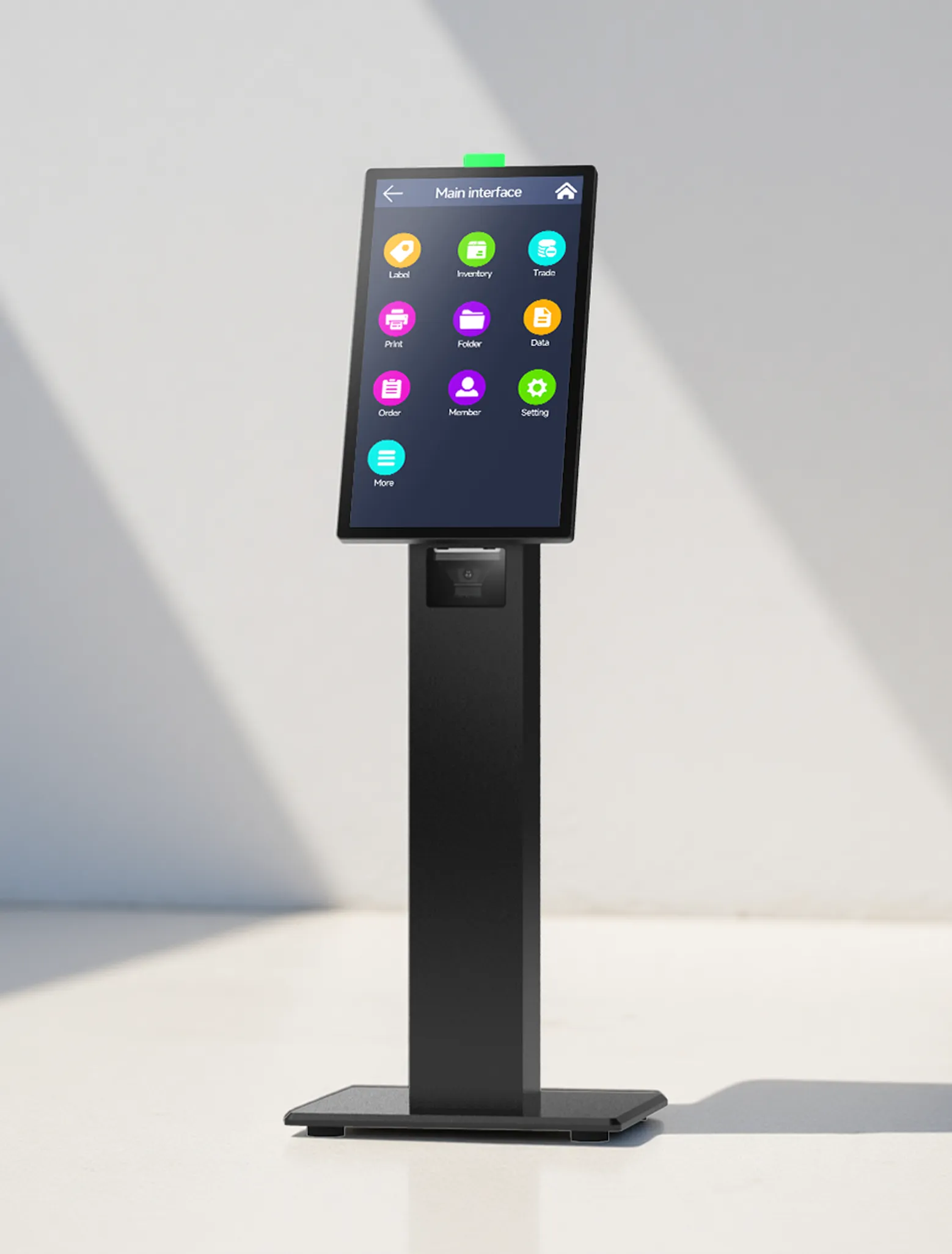

Standard floor-standing kiosk setup for self-ordering, ticketing, patient check-in, self-checkout, and high-visibility service areas.
SK1 is designed as modular self-service kiosk hardware for software companies, system integrators, and solution providers. It can be configured with receipt printing, barcode scanning, NFC card reading, MSR reading, POS terminal mounting, camera, status light, and other hardware modules based on project requirements.
Integrated 1D / 2D Barcode Reader
Secure EFT Terminal Mount
Built-in Thermal Receipt Printer
Smart LED Indicator

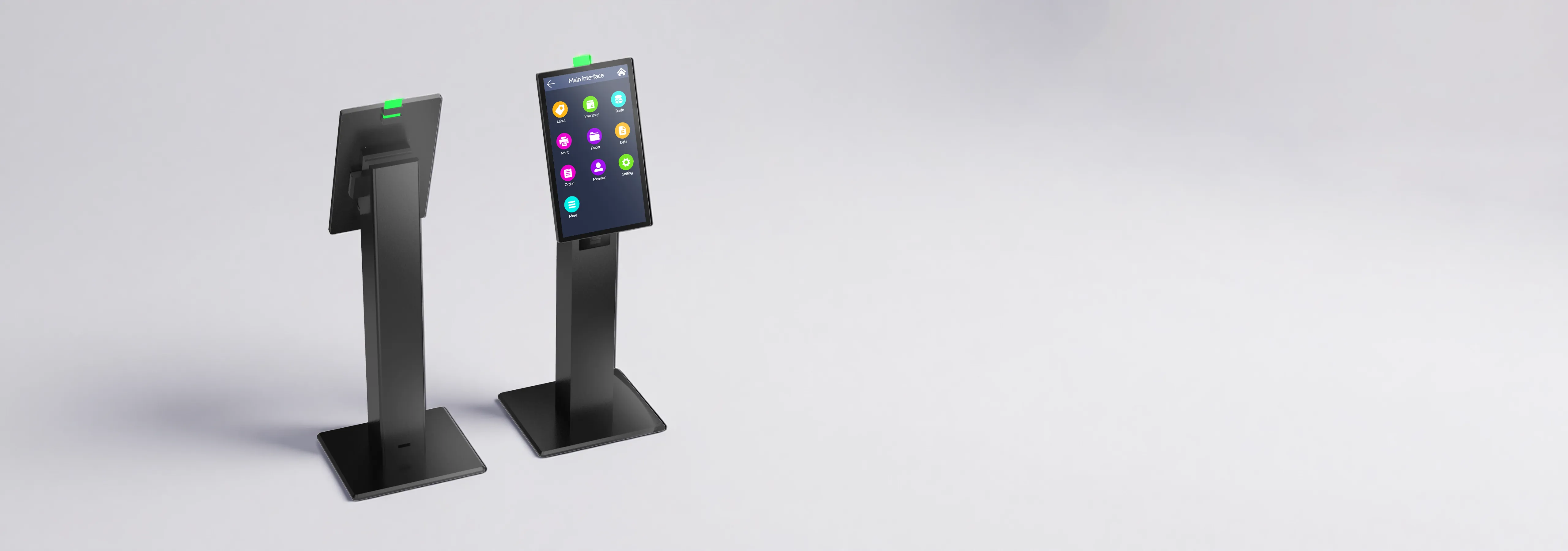

The SUNTEK SK1 utilizes a premium aluminum alloy chassis to deliver exceptional structural stability in high-traffic commercial environments. This minimalist, durable design withstands continuous daily use while elevating the modern aesthetic of your retail or hospitality deployment space.
Built-in digital audio speaker ensures clear communication and effective self-service guidance.
(10M/100M/1000M)
(Dual-band 2.4GHz + 5GHz)
(Bluetooth 5.4)
SK1 is suitable for commercial self-service kiosk projects where customers need to place orders, scan codes, print receipts, verify information, register visits, or complete service workflows through a reliable kiosk device.

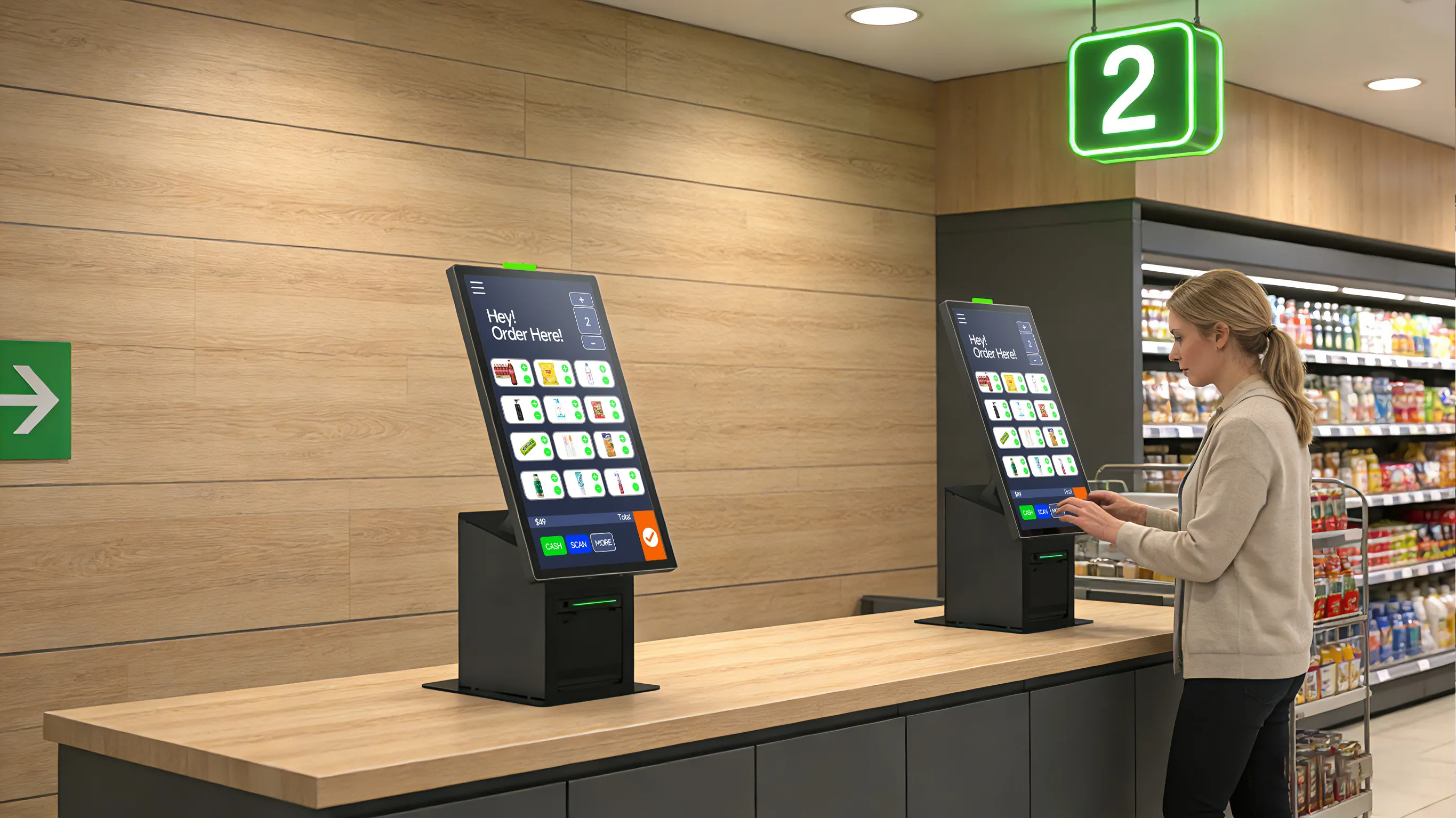

Self-Checkout & NFC Payments

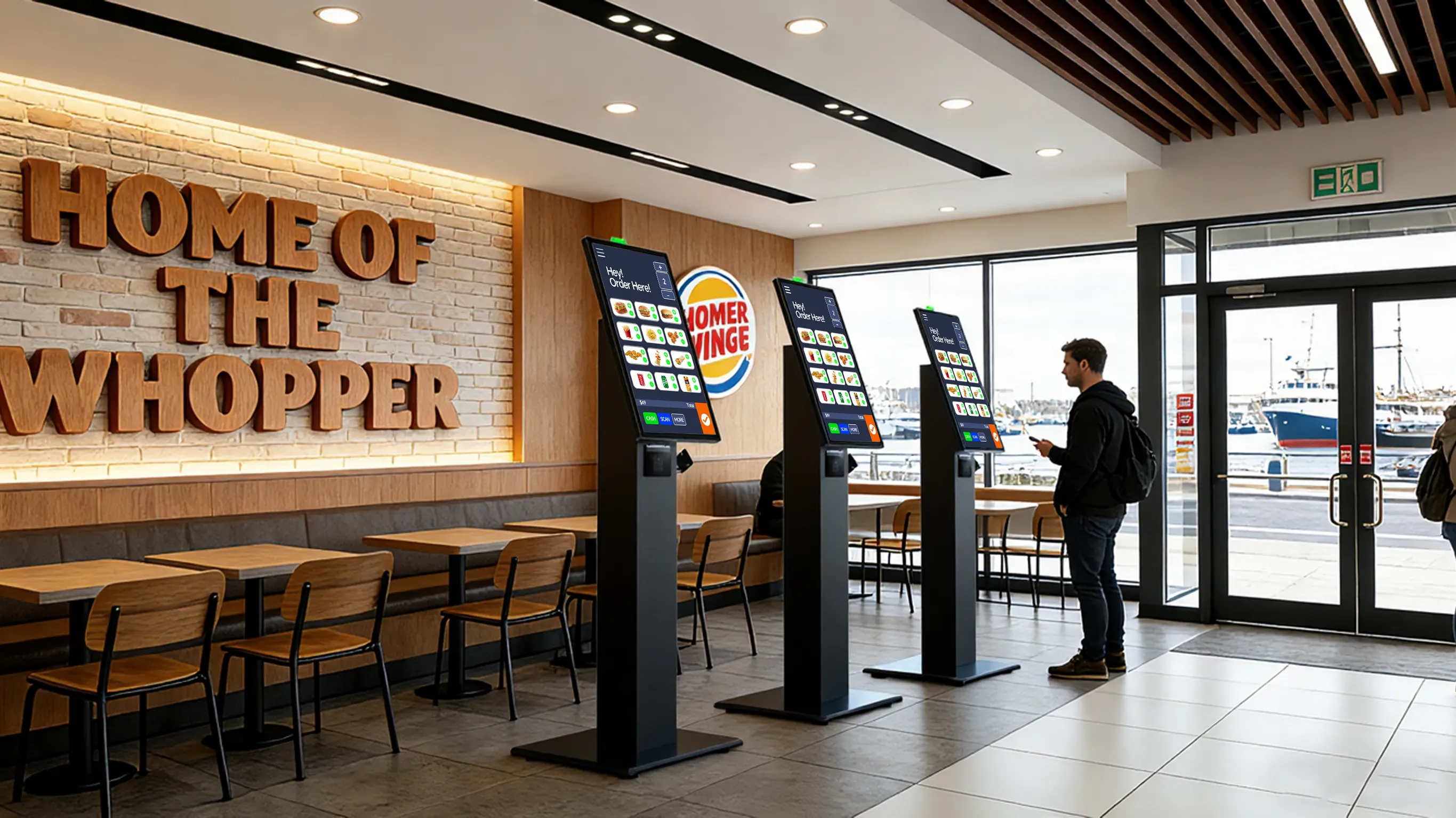

Self-Ordering & Contactless Payment

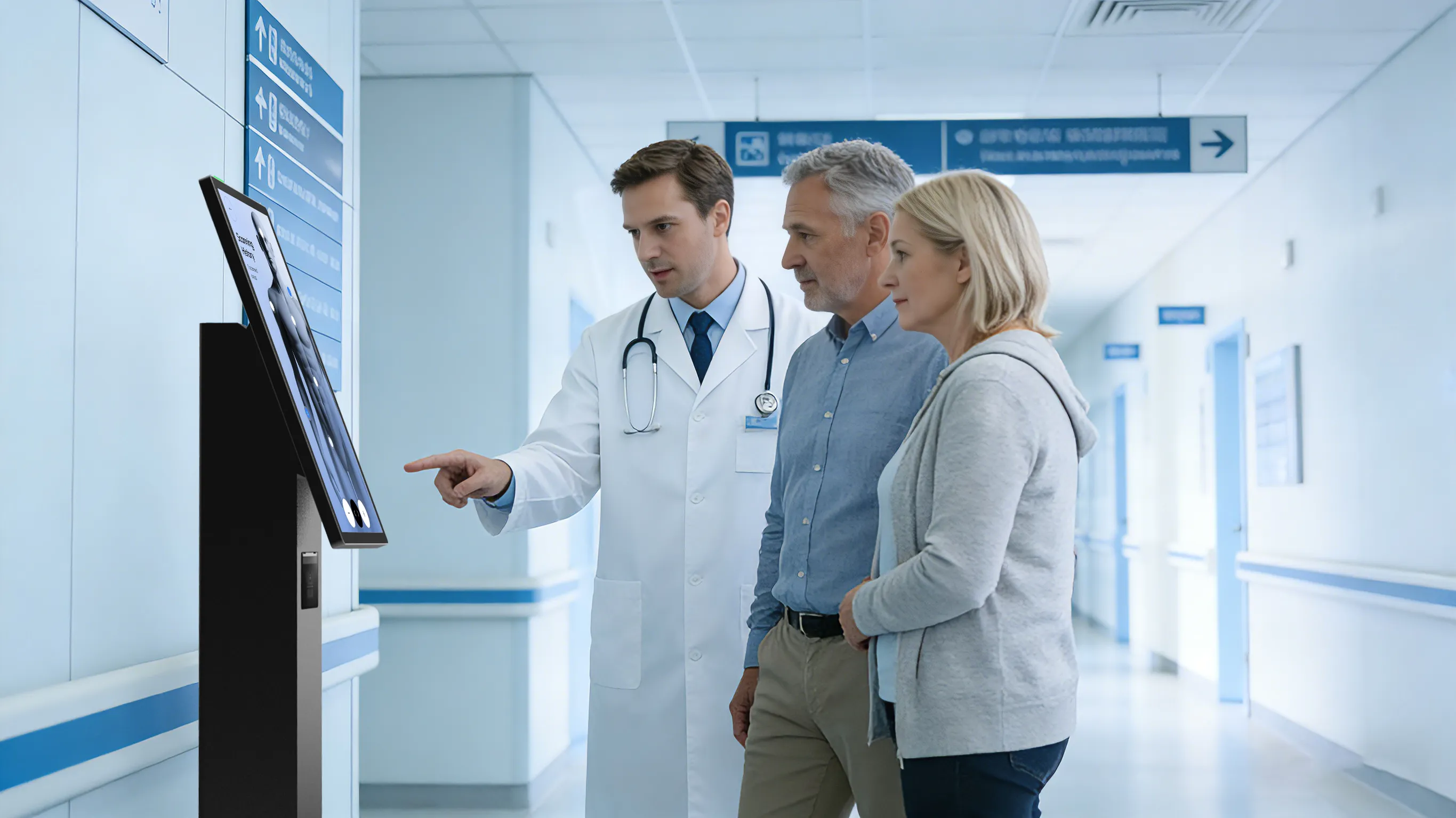

Patient Check-in & Receipt Printing
SDK support helps software companies and system integrators connect SK1 kiosk hardware with their ordering, checkout, registration, ticketing, and payment-related applications.
MDM support helps customers manage self-service kiosk fleets remotely, including device monitoring, remote updates, troubleshooting, and maintenance support for commercial deployments.
SUNTEK SK1 is a 21.5-inch modular self-service kiosk available with Android and Windows system options. It supports receipt printing, 1D / 2D barcode scanning, optional NFC, optional MSR, Ethernet, Wi-Fi, Bluetooth, multiple installation methods, and OEM / ODM configuration for retail, restaurant, healthcare, ticketing, registration, and payment-related kiosk projects.
| Item | SK1 Android Version | SK1W Windows Version |
|---|---|---|
| OS | Android 14 | Windows 10 |
| Processor | RK3576, Octa-Core 2.2GHz |
J6412; i3 or i5 Optional |
| Memory | 4GB RAM + 64GB ROM |
4GB RAM + 128GB SSD; 8GB RAM + 256GB SSD Optional; 16GB RAM + 512GB SSD Optional |
| Communications |
Wi-Fi: Dual-band 2.4GHz + 5GHz; Bluetooth: 5.4; Ethernet: 10M / 100M / 1000M |
Ethernet: 10M / 100M / 1000M; Wi-Fi: Dual-band 2.4GHz + 5GHz Optional |
| Rich Ports | 1 × DC, 2 × USB, 1 × RJ45 | 4 × USB, 1 × RJ45, 1 × HDMI, 1 × AC, 1 × DC, 1 × VGA, 1 × Line in, 1 × Line out |
| Display |
21.5-inch touchscreen; 15.6-inch touchscreen Optional |
21.5-inch touchscreen; 15.6-inch touchscreen Optional |
| Touch | 10-Point G+G Touch | 10-Point G+G Touch |
| Printer | 80mm printer with cutter, print speed 160mm/s max | 80mm printer with cutter, print speed 160mm/s max |
| QR Scanner | Supports common 1D and 2D codes | Supports common 1D and 2D codes |
| NFC | ISO14443 Type A/B, Mifare Optional | ISO14443 Type A/B, Mifare Optional |
| MSR | ISO7812, AAMVA, JIS-2 and others, beside the device Optional | ISO7812, AAMVA, JIS-2 and others, beside the device Optional |
| Audio | Digital audio speaker | Digital audio speaker |
| Installation Methods |
Desktop; Wall-mounted; Floor-standed |
Desktop; Wall-mounted; Floor-standed |
| Status Light | RGB LED three-color light | RGB LED three-color light |
| Power | DC 12V / 7A | DC 12V / 7A |
| Dimensions | 350(L) × 320(W) × 1532(H) mm | 350(L) × 320(W) × 1532(H) mm |
| Operation Environment |
Working temperature: 0°C–45°C; Operation humidity: 20%–80% |
Working temperature: 0°C–45°C; Operation humidity: 20%–80% |
| Storage Environment |
Storage temperature: -10°C–50°C; Storage humidity: 20%–80% |
Storage temperature: -10°C–50°C; Storage humidity: 20%–80% |
| MDM | Mobile Device Management Optional | Mobile Device Management Optional |
Note: Specifications are for reference only. Actual configuration may vary depending on project requirements. Optional modules and configurations can be customized based on deployment needs.
SUNTEK SK1 is a standard 21.5-inch modular self-service kiosk designed for ordering, checkout, ticketing, registration, information inquiry, and payment-related commercial service workflows.
Yes. SK1 supports Android and Windows configurations. The Android version is suitable for app-based kiosk software and cloud-connected service platforms, while the Windows version is suitable for PC-based kiosk software and complex peripheral integration.
Yes. SK1 can be used as a self-ordering kiosk for restaurants, quick service restaurants, food courts, cafés, and beverage stores when integrated with the customer's ordering software and payment workflow.
Yes. SK1 can be used as a self-checkout kiosk for retail stores, convenience stores, supermarkets, and chain stores. It can support barcode scanning, receipt printing, member registration, and payment terminal integration.
SUNTEK mainly provides self-service kiosk hardware, SDK, and technical integration support. Customers usually use their own kiosk software or work with their software partners for application development.
