SK7 OVERVIEW

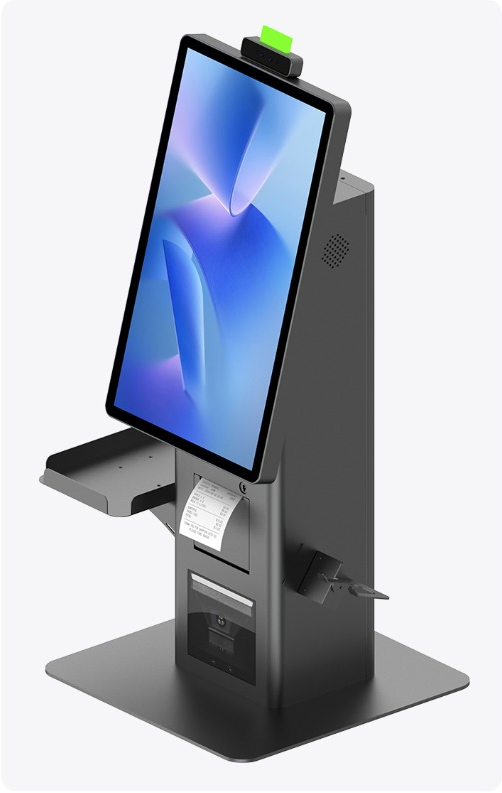

The SUNTEK SK7 is a modular self-service kiosk with a standard 21.5-inch or optional 27-inch FHD touchscreen. It includes an 80mm thermal printer, a 1D/2D barcode scanner and three POGO Pin interfaces for optional modules.

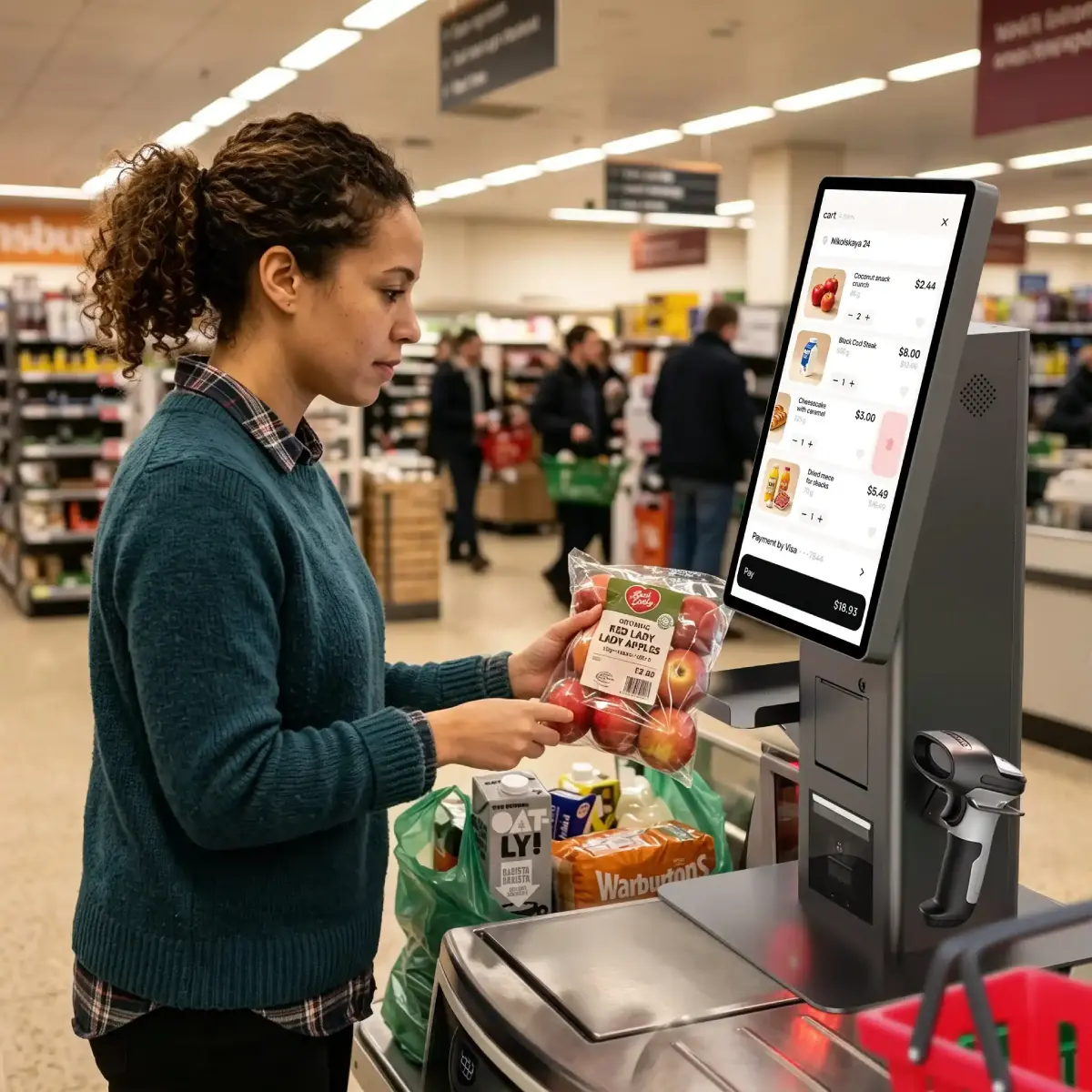

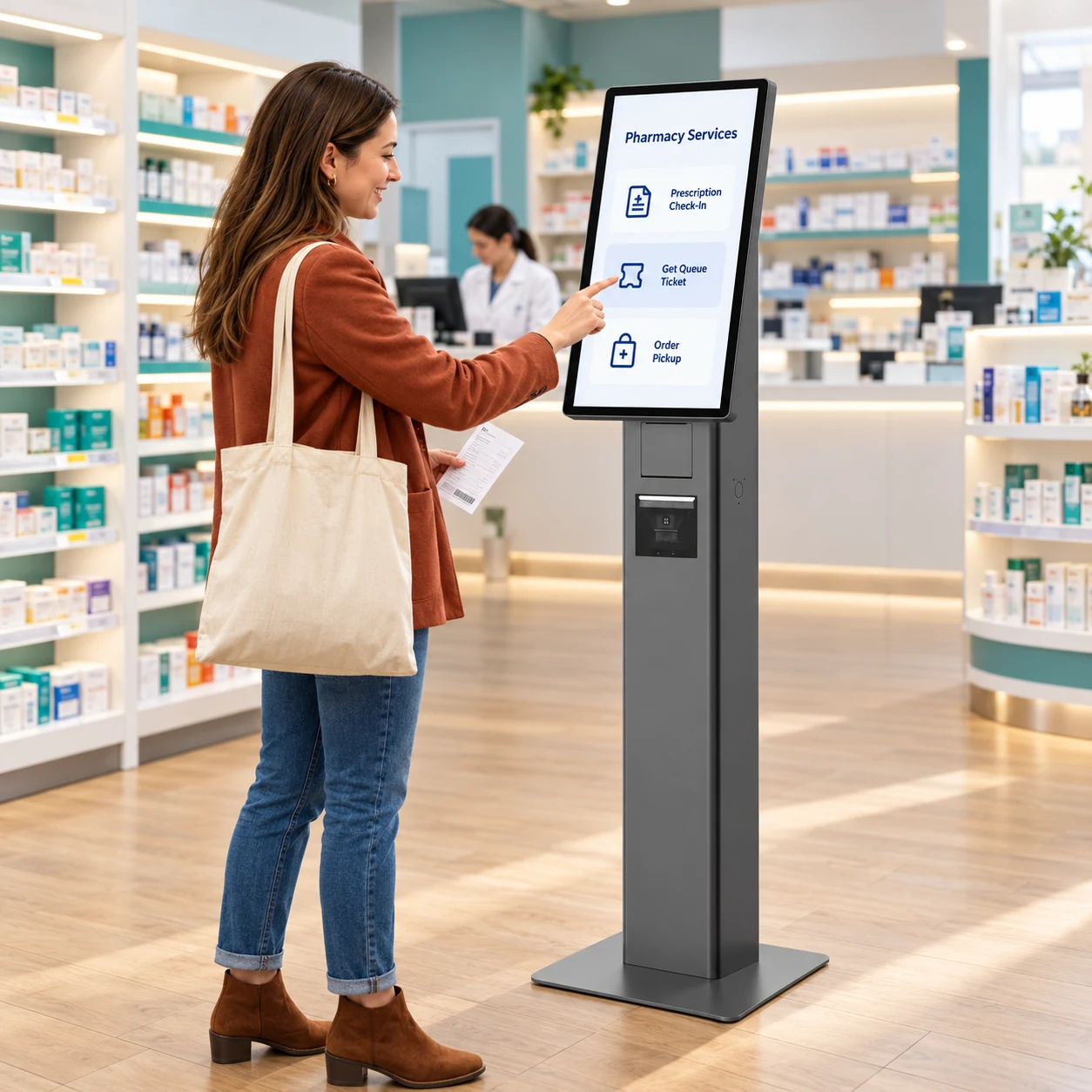

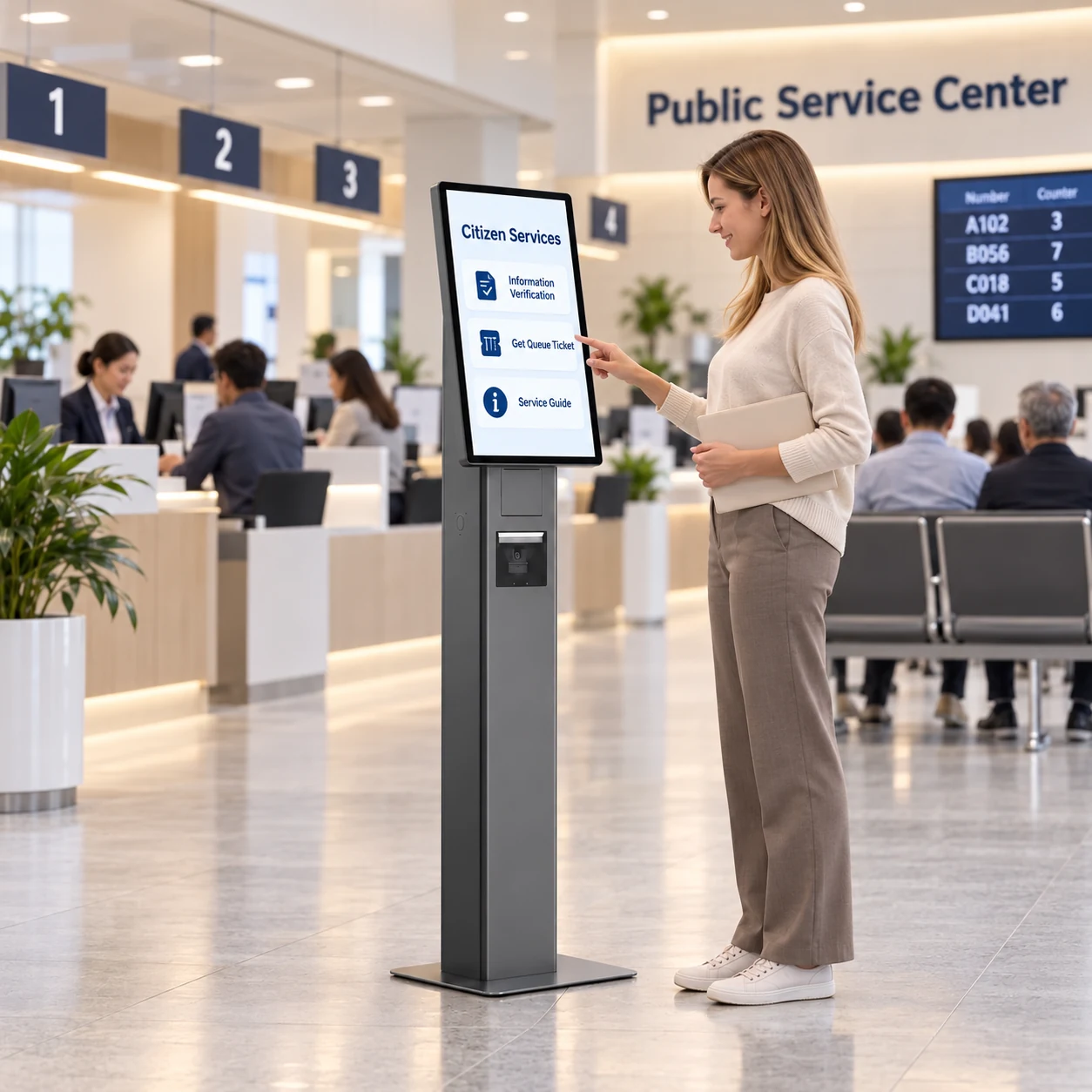

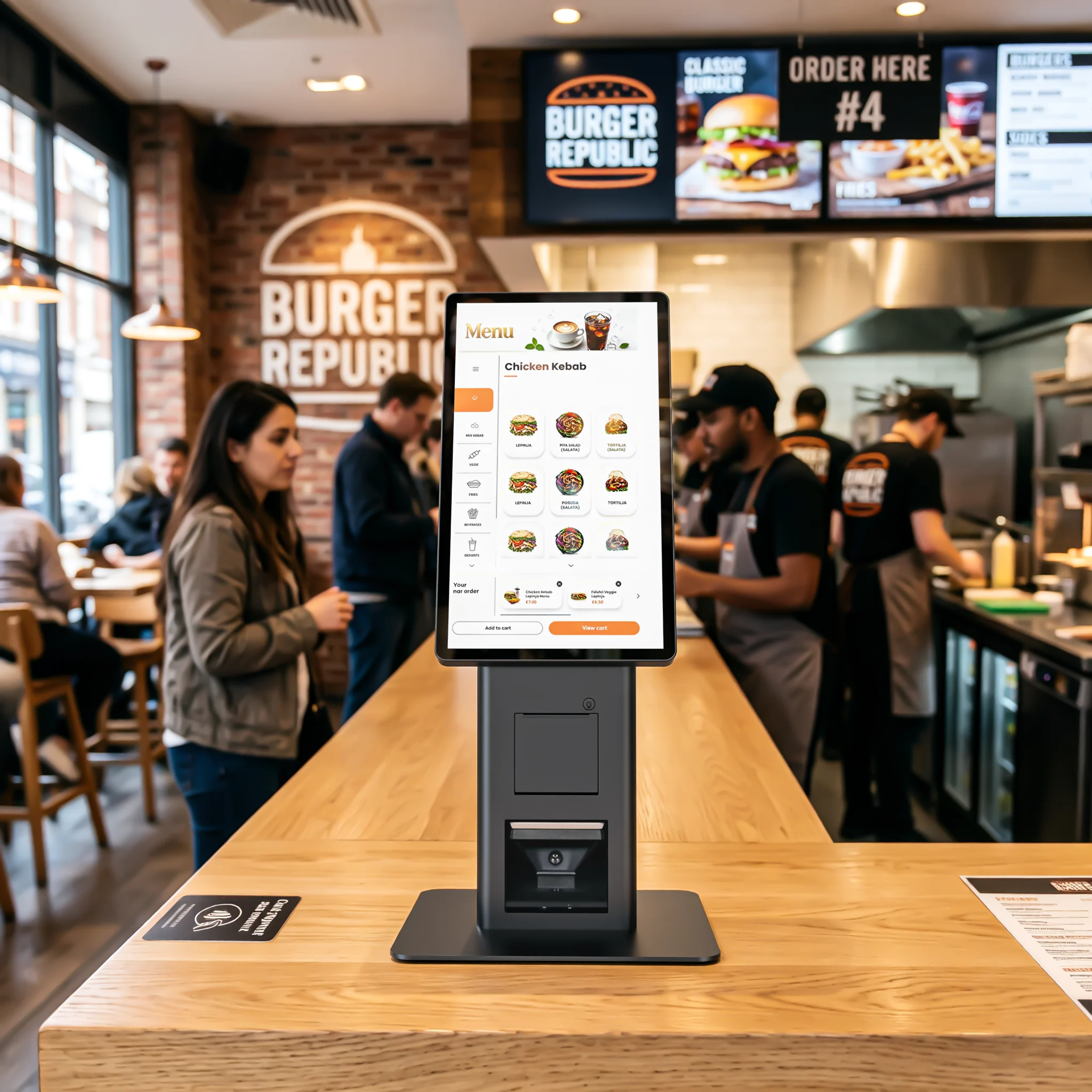

Available with Android or Windows and desktop or floor-standing installation, SK7 supports customer-developed applications for self-ordering, checkout, ticketing, queueing, check-in and information service.
Choose the Platform That Fits Your Project
SK7 is available with Android or Windows, giving you the flexibility to match different operating system requirements and application deployment needs.

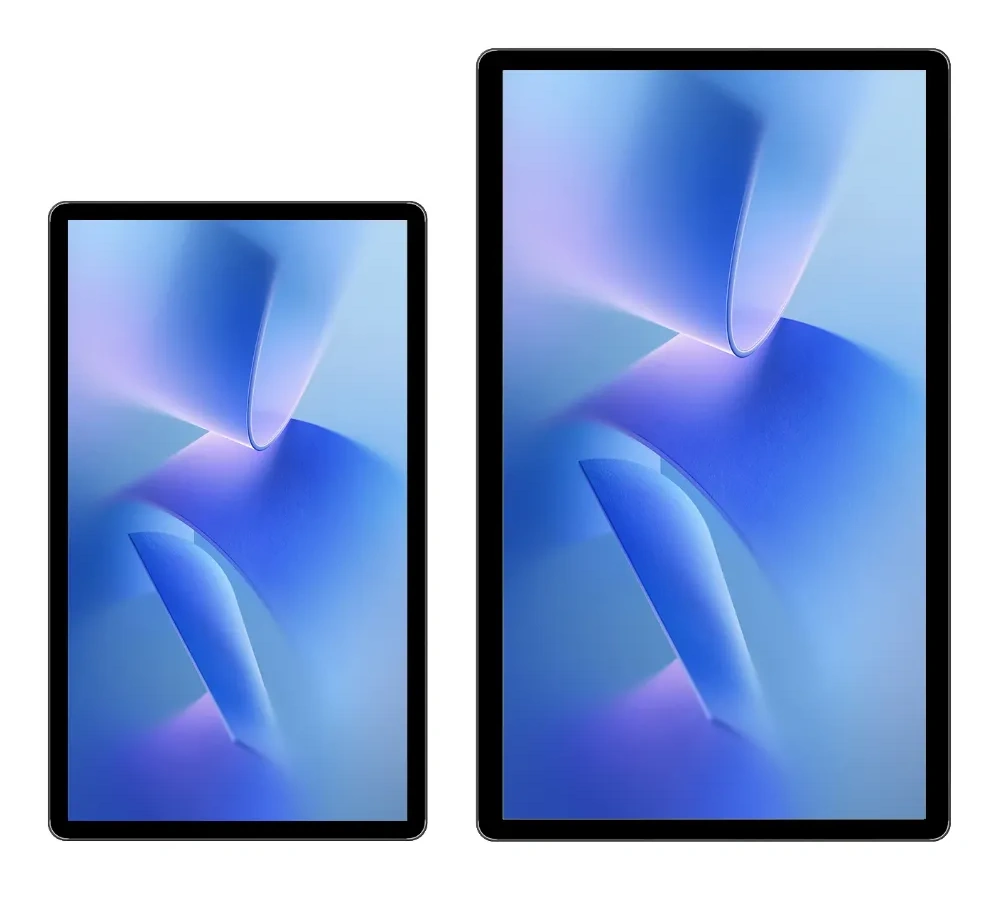

The FHD touchscreen delivers clear visuals and responsive 10-point touch interaction, with 500-nit brightness for everyday self-service use.
500-nit high brightness ensures clear visibility even in bright retail & public-venue environments.
500 nits
10-Point G+G Touch
*21.5-inch Standard, 27-inch Optional

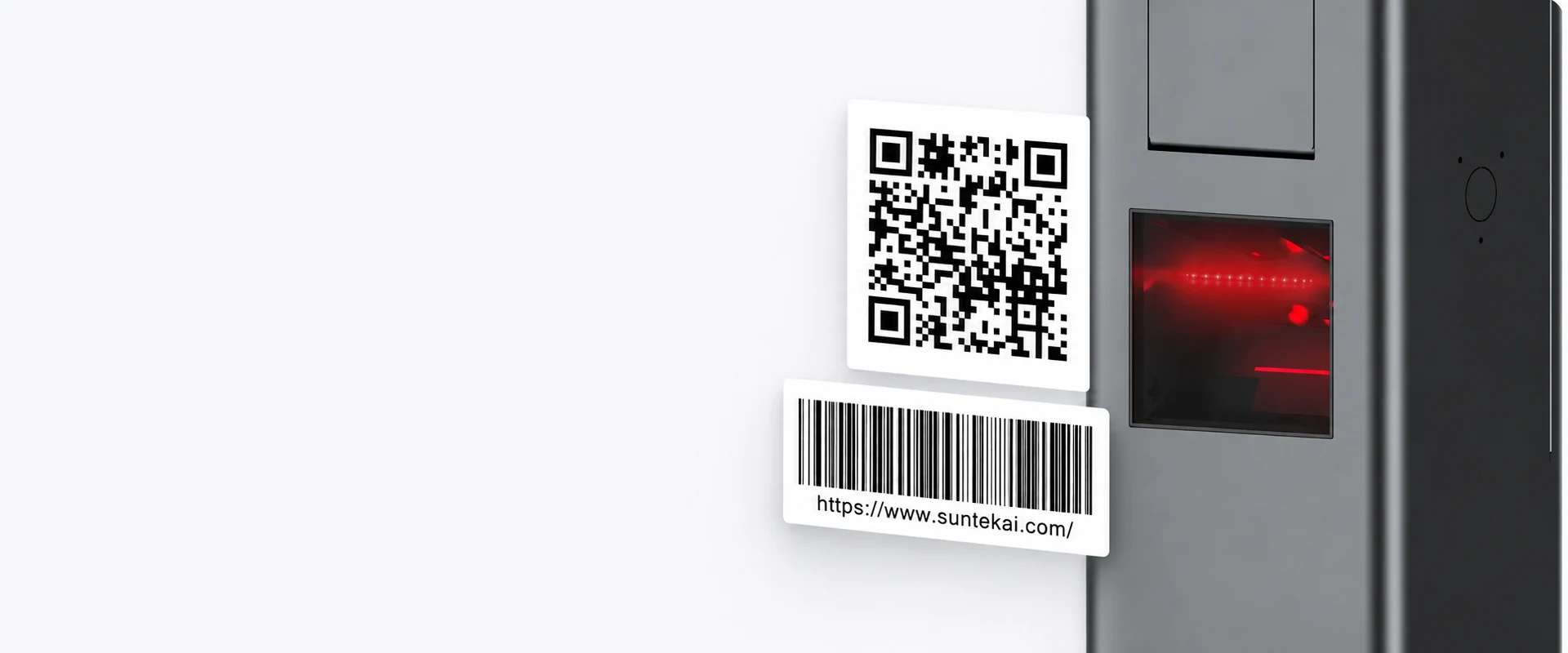

The built-in scanner supports product barcodes, QR codes, mobile codes and electronic tickets for ordering, checkout, ticketing and registration workflows

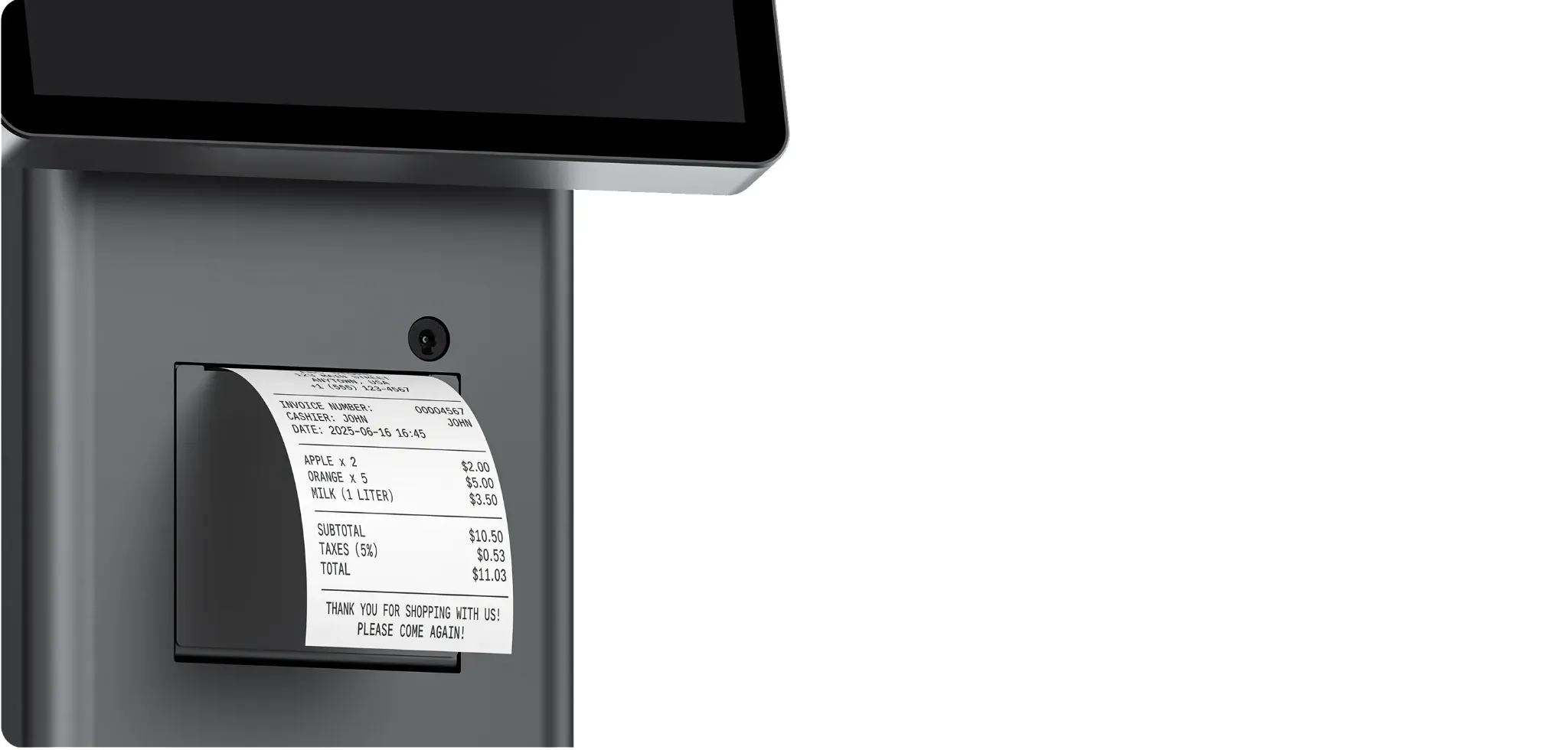

The built-in 80mm thermal printer supports automatic cutting and print speeds up to 160mm/s for receipts, order slips, queue tickets and other self-service documents.
Replaceable Printer Module: Designed for easier maintenance and flexible printer integration, subject to compatibility validation.
80mm Thermal Printing
Automatic Cutter
Up to 160mm/s

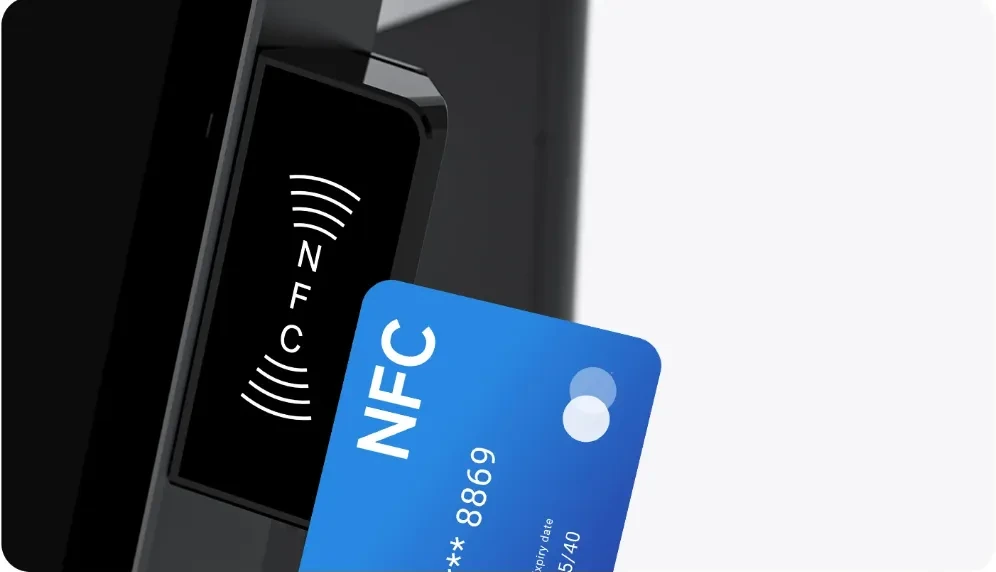

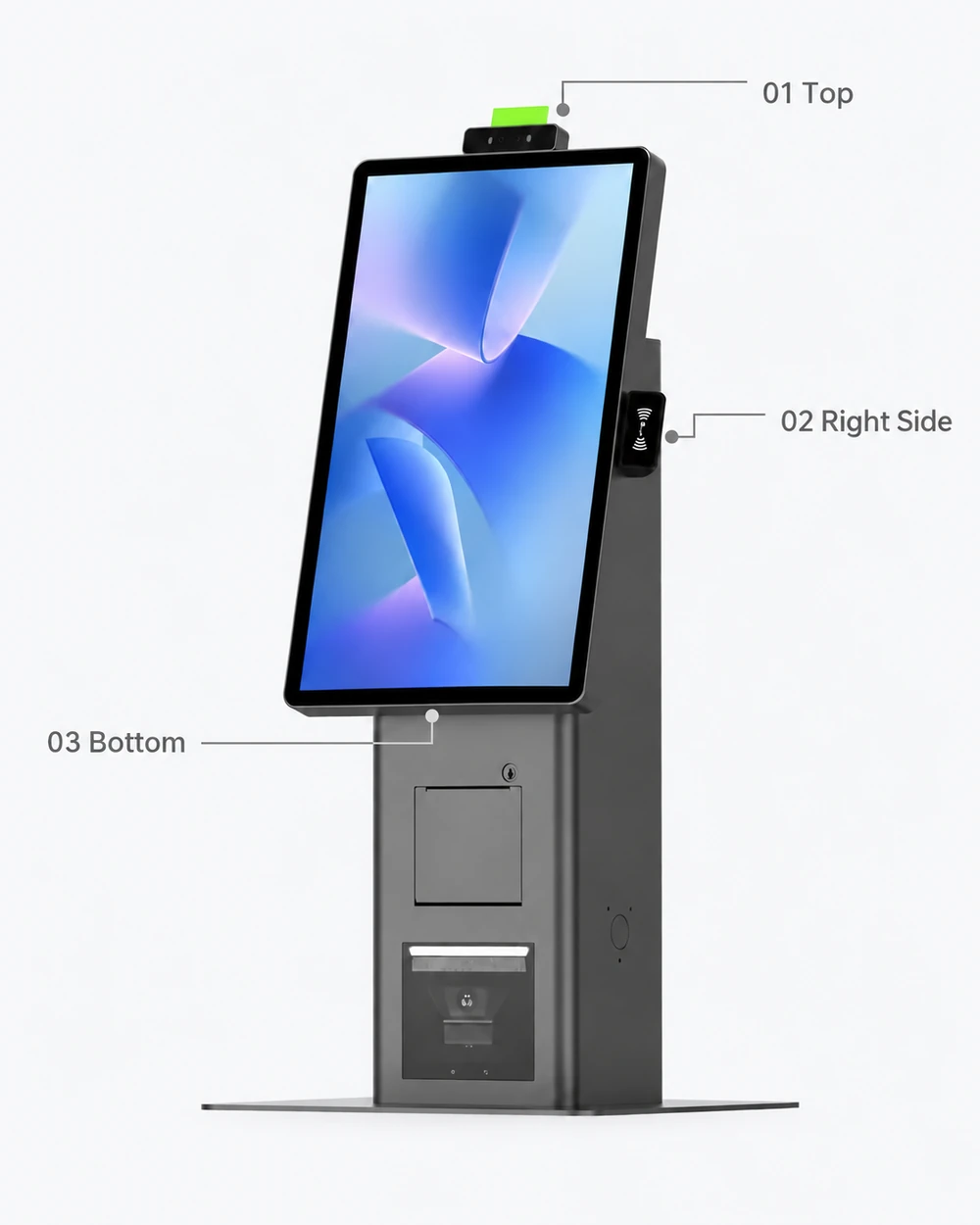

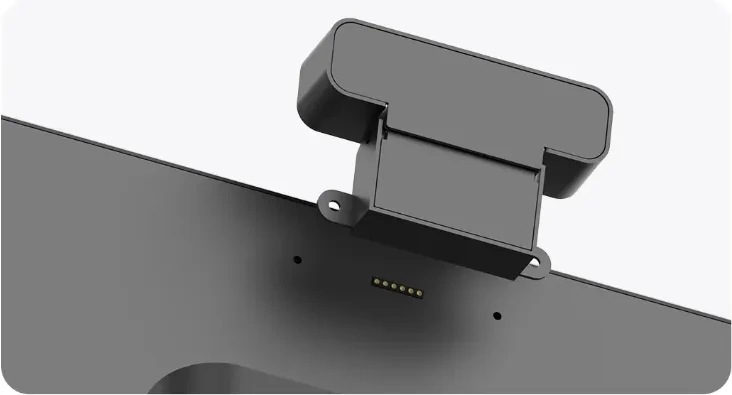

Three USB-based POGO pin interfaces support compatible expansion modules, including NFC readers, MSR readers, cameras, barcode scanners, fingerprint readers and more.
Modules connect through POGO pin contacts and are secured with screws, without disassembling the kiosk main body.
Add optional modules and mounting brackets according to your application, payment setup and service workflow.

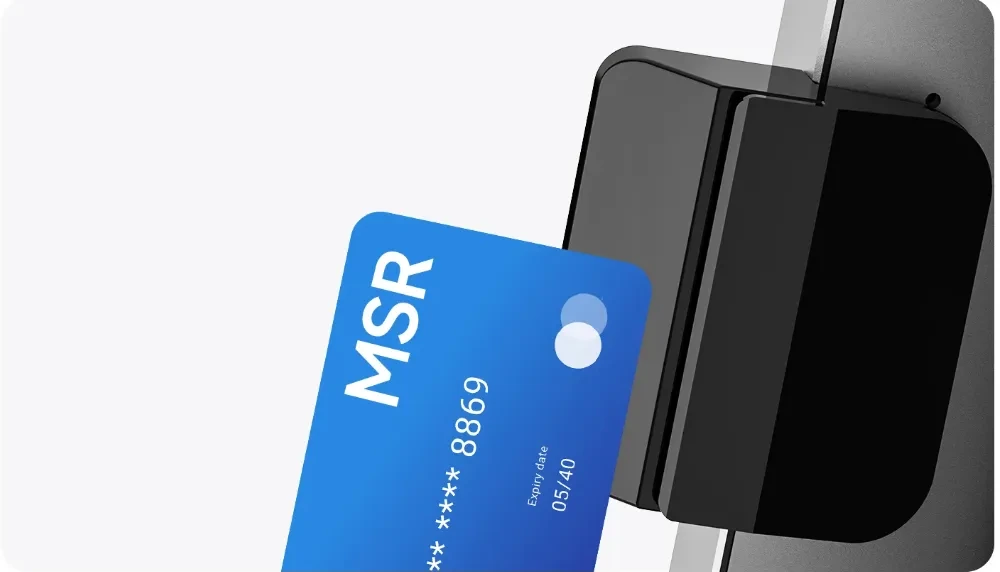

Magnetic Stripe Card Reading

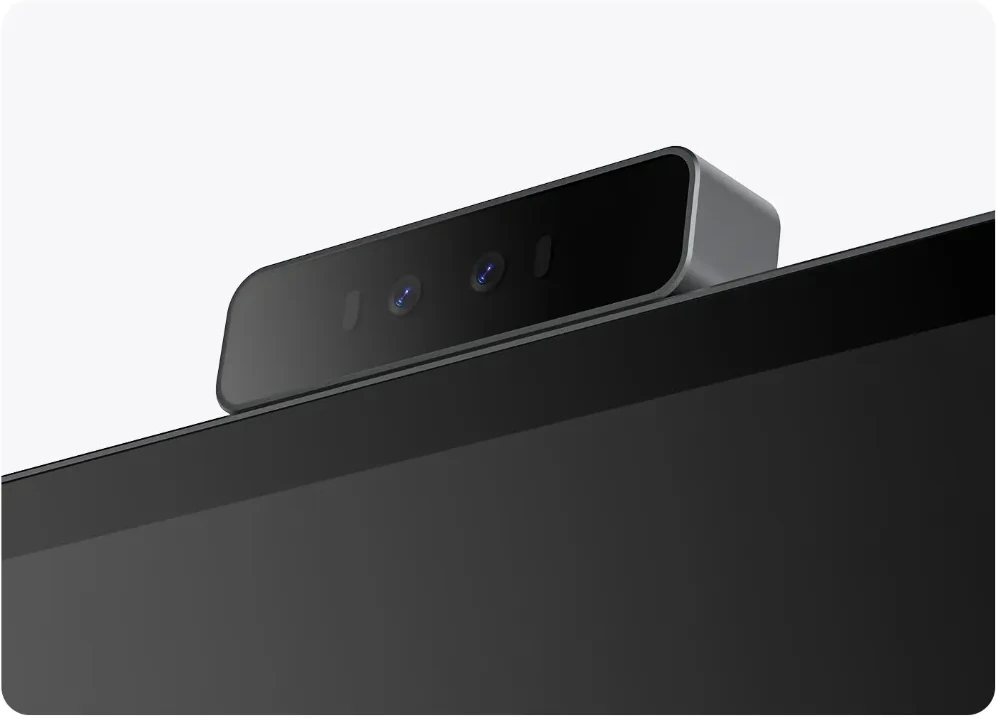

Monocular / Binocular

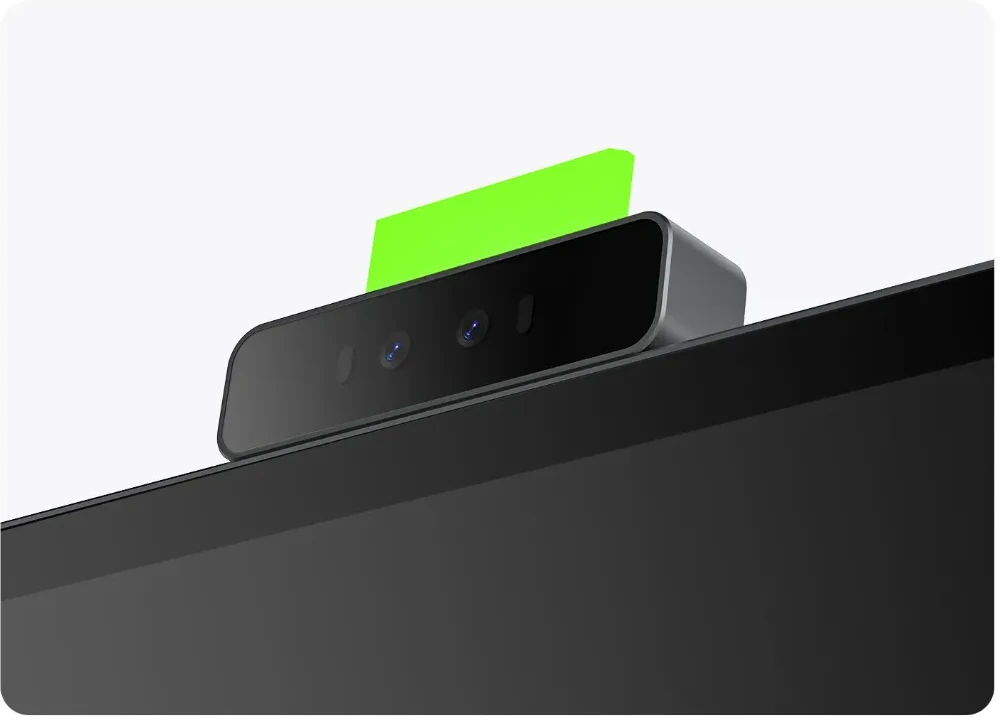

Visual Device Status Indication

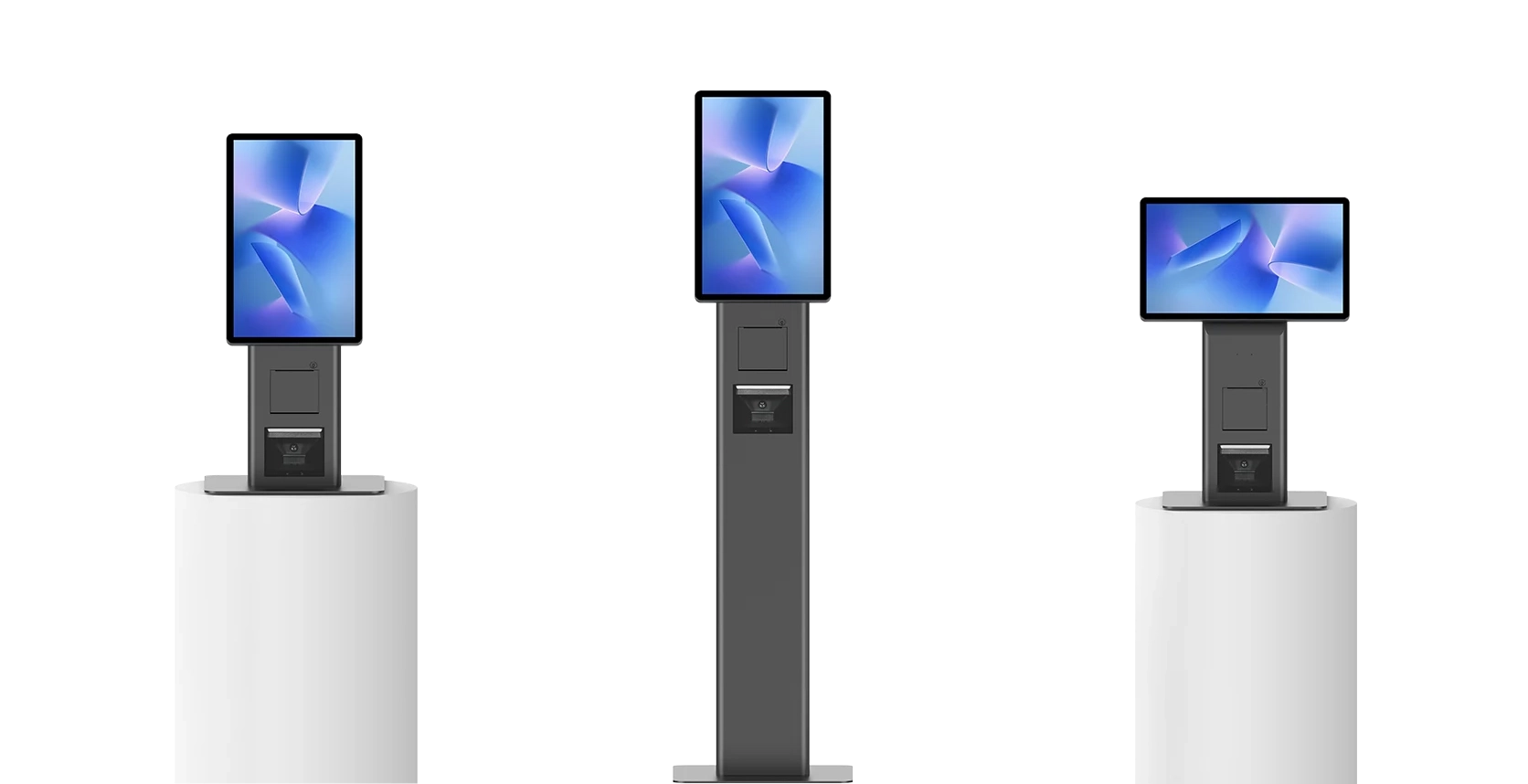

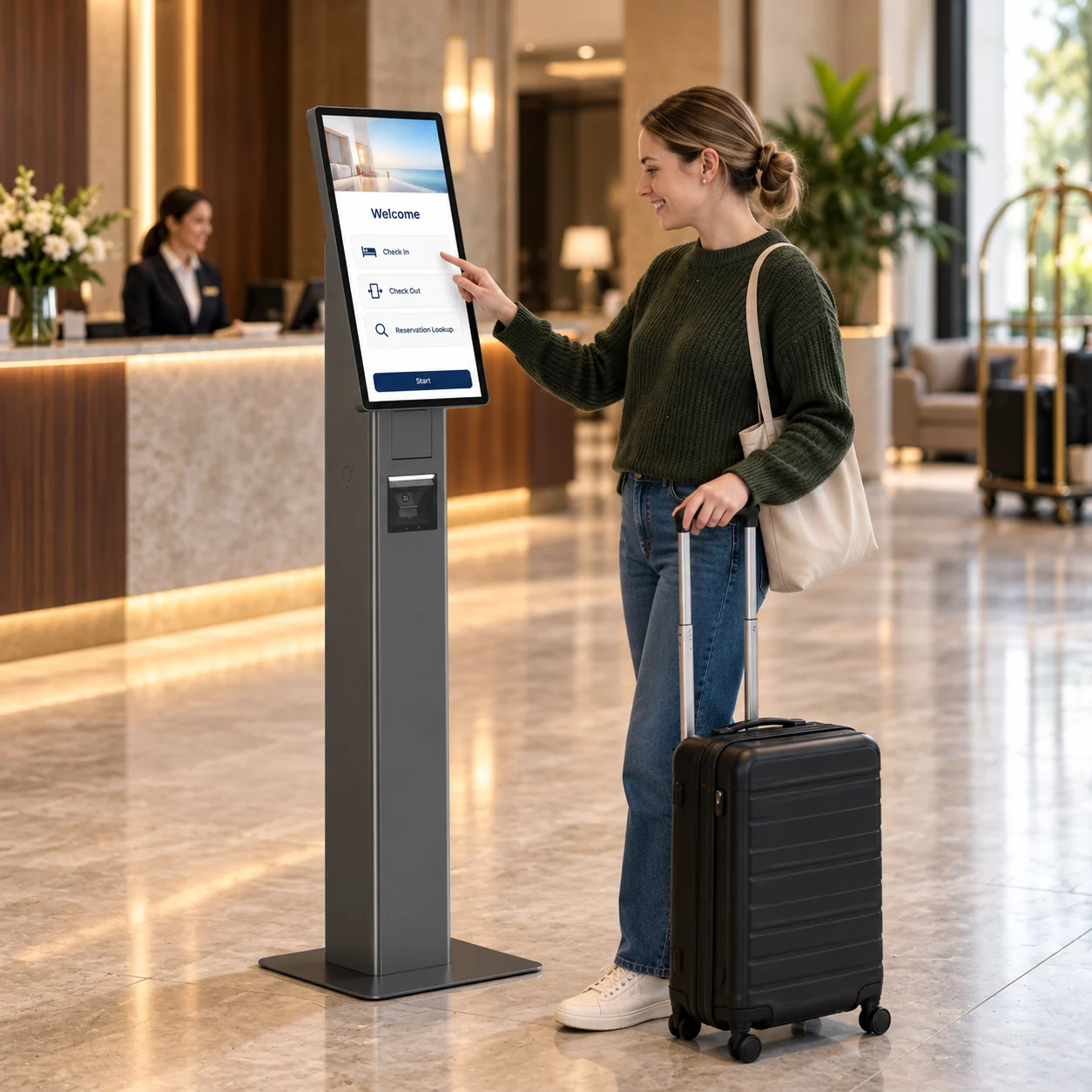

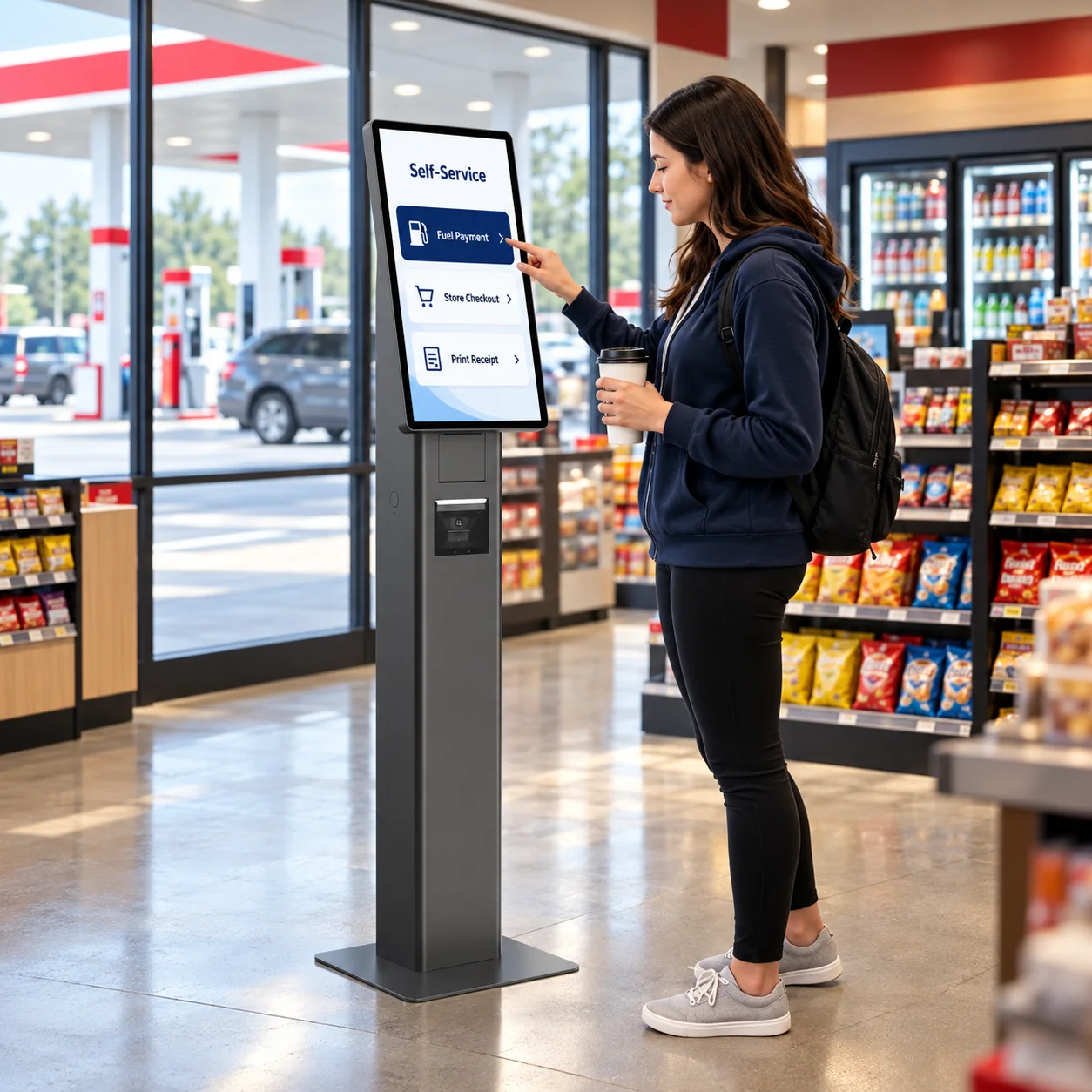

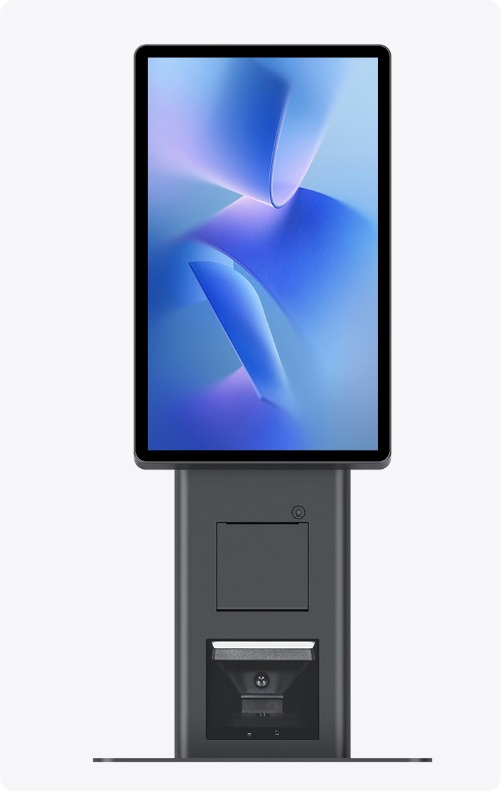

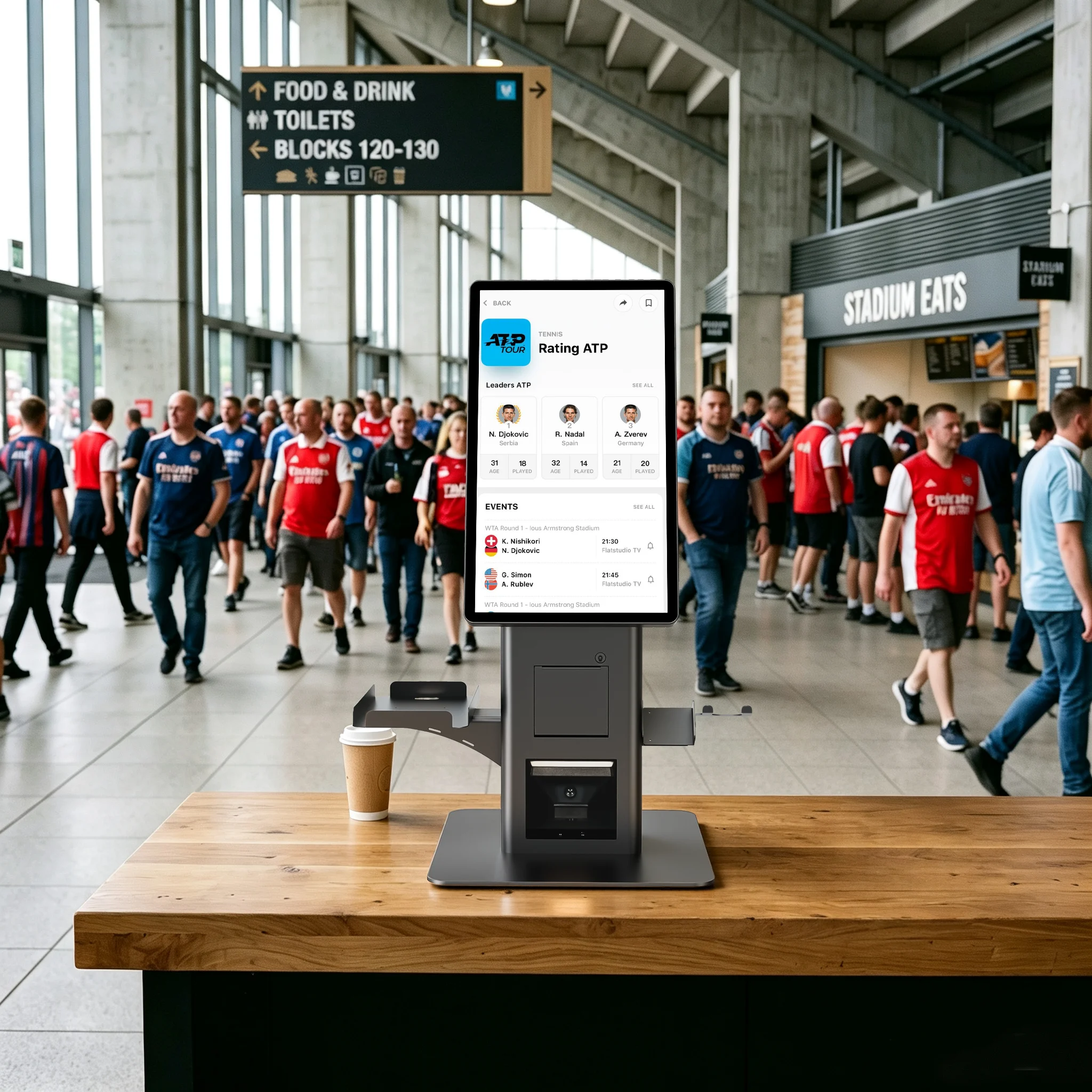

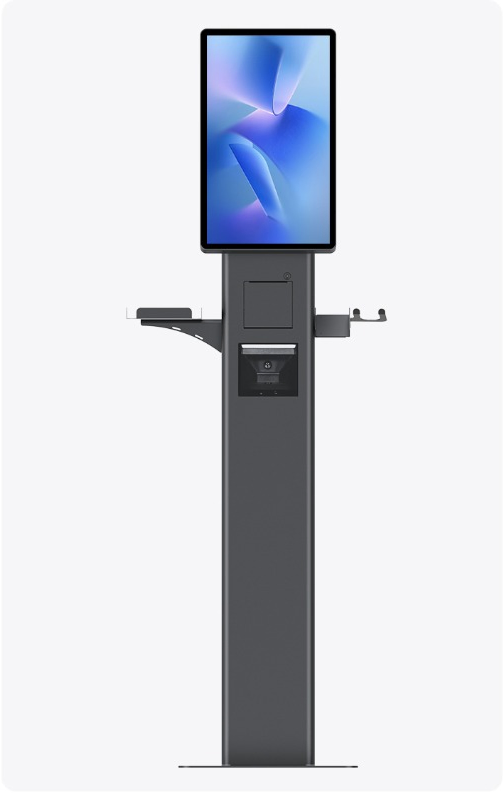

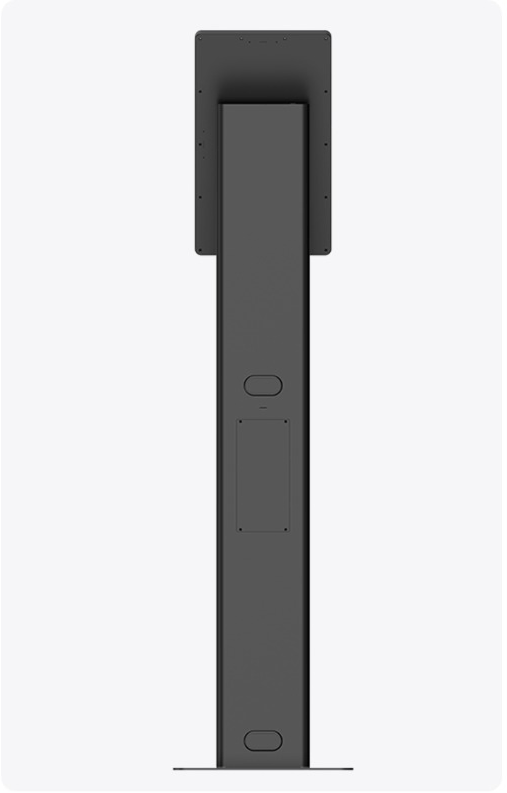

Choose countertop or freestanding deployment, with portrait or landscape screen orientation to suit your application.
*VESA 100 × 100 mounting interface.

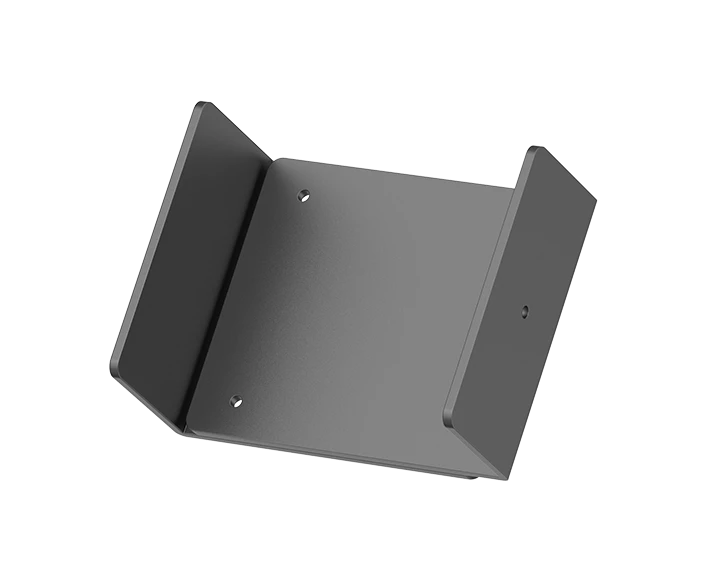

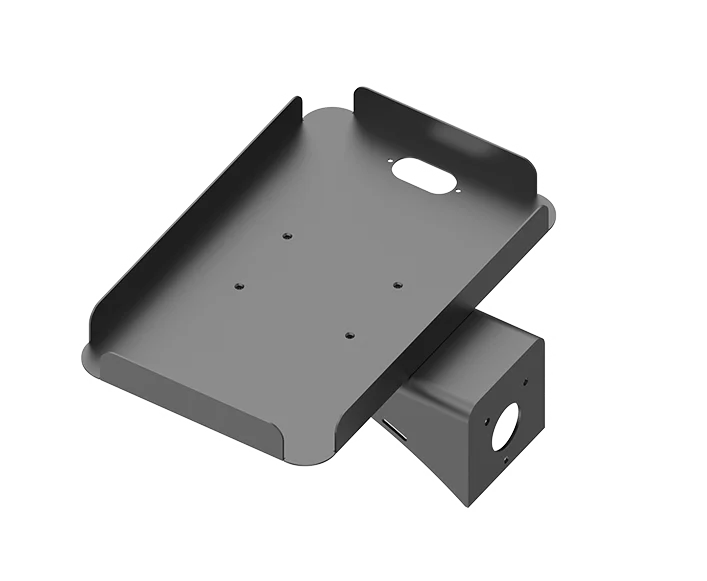

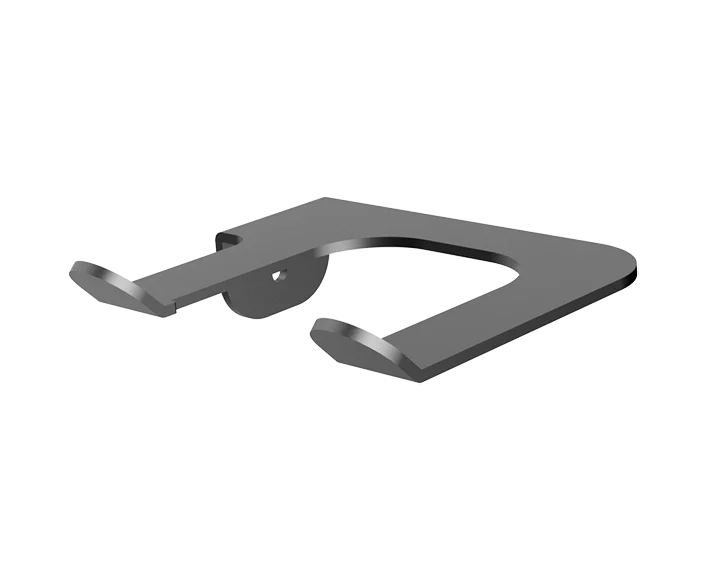

Custom mounting brackets simplify third-party peripheral integration for project-specific requirements.
Powered by the RK3576 platform with a 6 TOPS NPU, SK7 supports a range of edge AI applications for smarter self-service experiences.

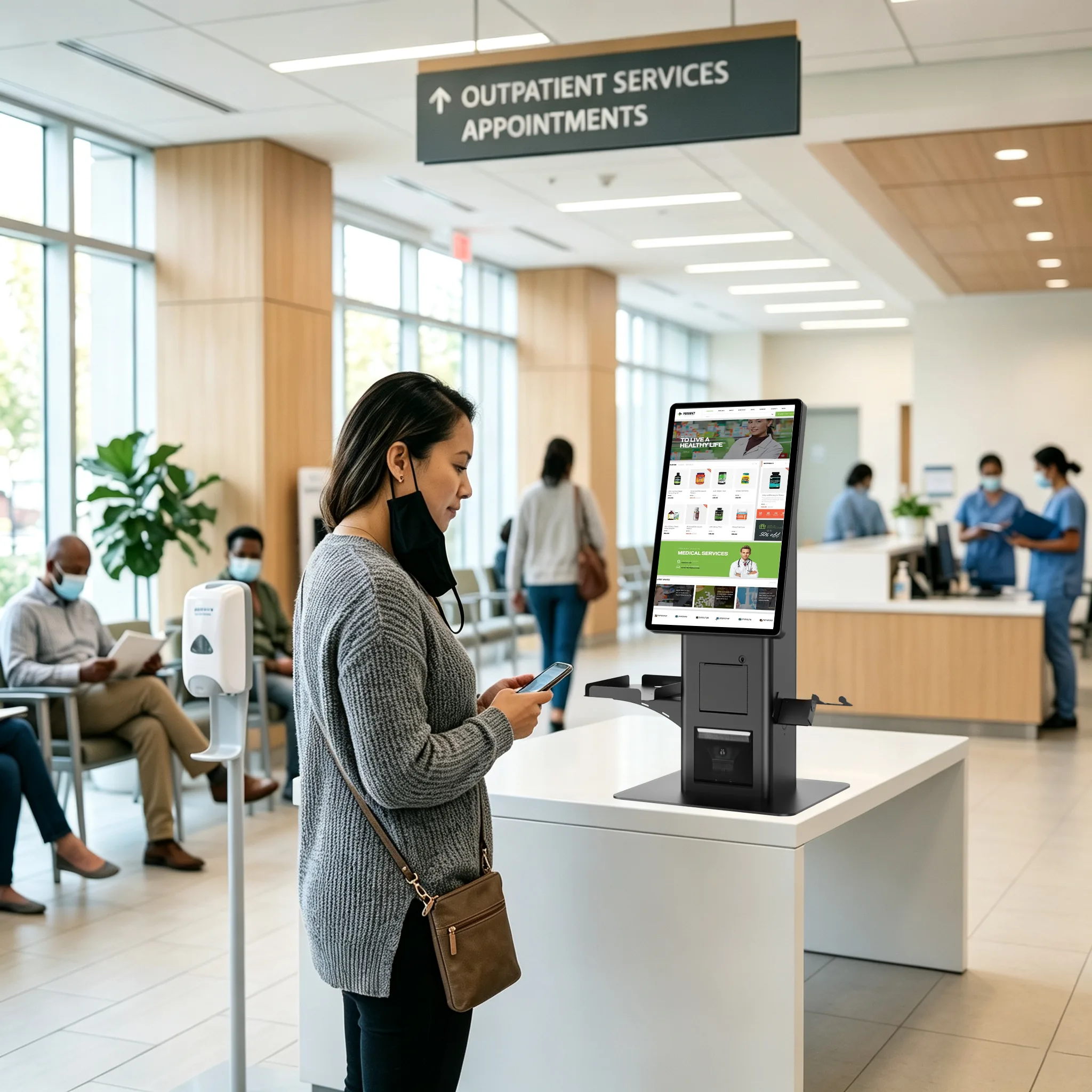

*These AI capabilities can be applied across retail, QSR, hospitality, healthcare, public services and other self-service environments.
SUNTEK MDM
Monitor, configure, update and support SUNTEK Android devices from one centralized platform.
Remotely access and troubleshoot devices.
Configure device and Kiosk settings remotely.
Monitor device status, network and system information.
Deploy apps and firmware remotely.
SUNTEK SK7 is available in Android and Windows, with 21.5-inch or optional 27-inch touch displays, integrated barcode scanning and thermal printing, and modular expansion for ordering, checkout and self-service applications.
Swipe horizontally to compare Android and Windows specifications.
| Item | SK7 Android Version | SK7W Windows Version |
|---|---|---|
| OS | Android 14 | Windows 10 |
| Processor | RK3576, Octa-Core 2.2GHz NPU: 6 TOPS |
Intel Core i5-4310 Intel J6412 Optional Intel Core i3 / i5 Optional |
| Memory | 4GB RAM + 32GB ROM 4GB RAM + 64GB ROM Optional 8GB RAM + 64GB ROM Optional 8GB RAM + 128GB ROM Optional |
4GB RAM + 128GB SSD 8GB RAM + 256GB SSD Optional 16GB RAM + 512GB SSD Optional |
| Display | 21.5-inch (1920×1080), 10-Point G+G Touch, 500 nits 27-inch (1920×1080), 10-Point G+G Touch, 500 nits Optional |
|
| Communications | Wi-Fi: Dual-band 2.4GHz / 5GHz, IEEE 802.11 a/b/g/n/ac Bluetooth: 5.4, BLE support Ethernet: 10 / 100 / 1000Mbps |
Ethernet: 10 / 100 / 1000Mbps Wi-Fi: Dual-band 2.4GHz / 5GHz, IEEE 802.11 a/b/g/n/ac Optional |
| Rich Ports | 7 × USB Type-A 1 × USB Type-B 1 × RJ45 1 × HDMI 1 × Audio 3 × POGO Pin (USB) 1 × DC |
7 × USB Type-A 1 × USB Type-B 1 × RJ45 1 × HDMI 1 × VGA 1 × Speaker 1 × Microphone 3 × POGO Pin (USB) 1 × DC |
| Barcode Scanner | Supports 1D / 2D barcode scanning | |
| Audio | Digital audio speaker Two-array microphone Optional Four-array microphone Optional |
|
| Printer | 80mm thermal printer with cutter, up to 160mm/s | |
| Optional Modules | NFC Reader Module Optional MSR Module Optional Camera Module Optional Status indicator Light Optional USB peripherals via POGO Pin expansion Optional |
|
| Peripheral Brackets | Printer Bracket Optional Payment Terminal Bracket Optional Barcode Scanner Bracket Optional |
|
| Accessories | Thermal Printer Optional Barcode Scanner Optional |
|
| Button | 1 × Power Button | |
| Input Voltage | AC 100–240V, 50 / 60Hz | |
| Power Supply | DC 12V / 5A | |
| Installation | Desktop Stand Optional Floor Stand Optional VESA 100 × 100 Mount Optional |
|
| Dimensions | Desktop: 230(L) × 330(W) × 730(H) mm Floor Stand: 270(L) × 330(W) × 1625(H) mm |
|
| Operating Environment | Operating temperature: −5°C to 45°C Operating humidity: 20%–80% |
|
| Storage Environment | Storage temperature: −10°C to 60°C Storage humidity: 20%–80% |
|
| MDM | Mobile Device Management Optional | — |
Three POGO Pin expansion interfaces are available for optional peripheral integration.
Optional indicates optional specifications. “—” indicates information not specified in the supplied specification sheet.
Note: The product specifications on this page are for reference only, and the actual product shall prevail.
