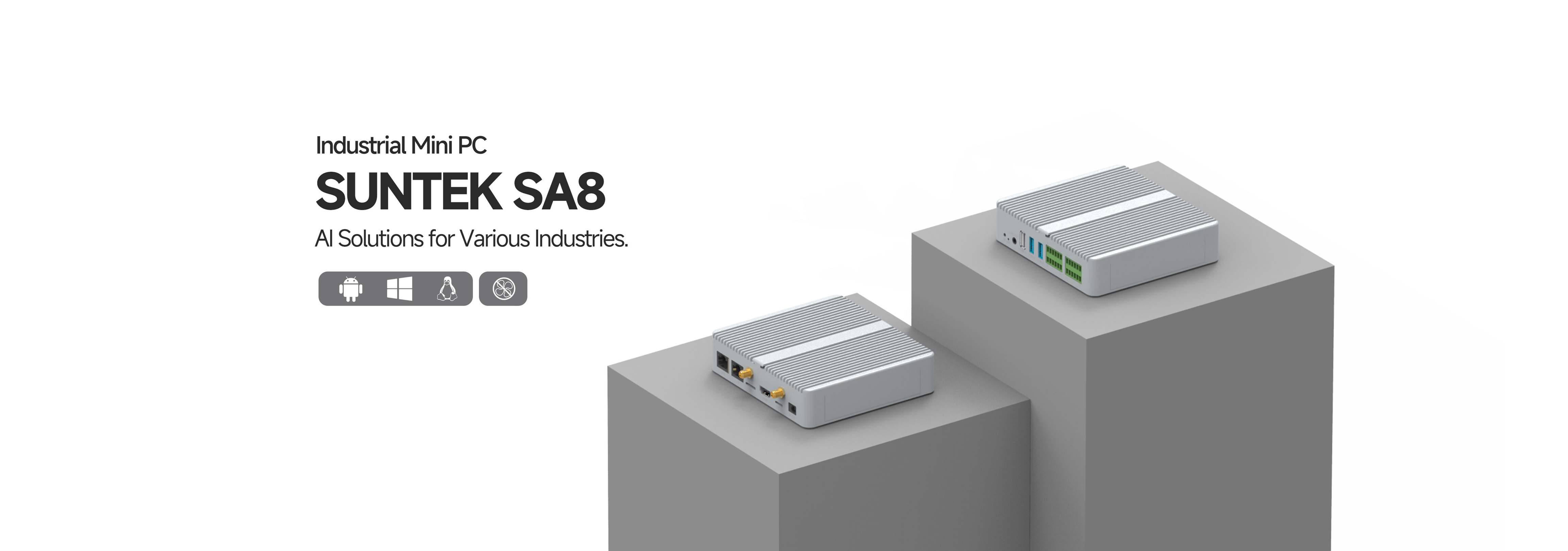

SA8 Technical Specifications

Product model SA8

OS Android 12

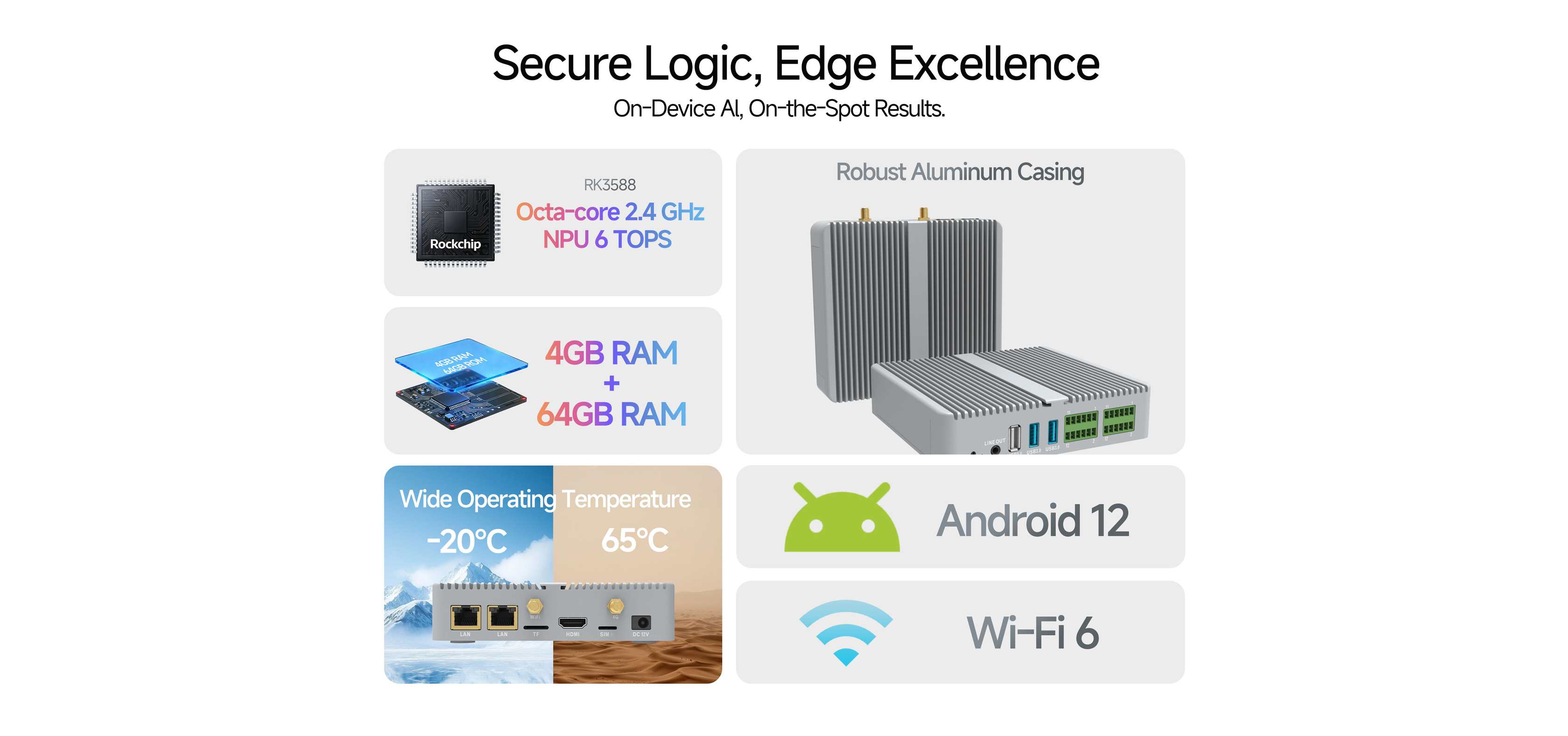

Processor Quad-Core 2.0GHz

GPU ARM Mali-G610 MP4 OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 Embedded 3D engine

NPU 6 TOPS

Memory 4GB RAM+64GB ROM 8GB RAM+128GB ROM(※) Supports USB expansion

Wi-Fi Built-in WiFi 6, dual-band, Support 2.4G/5G; Support 4G network(※)

Ethernet 10M/100M/1000M;

Bluetooth Bluetooth5.4;

Multimedia Supports 8K@60fps, H.265 & vp9 decoding; Supports 8K@30fps, H.264 decoding; Supports 4K@60fps, AV1 decoding

Display Ports 1 HDMI port, HDMI Type-A, max supports 8K@60Hz (output)

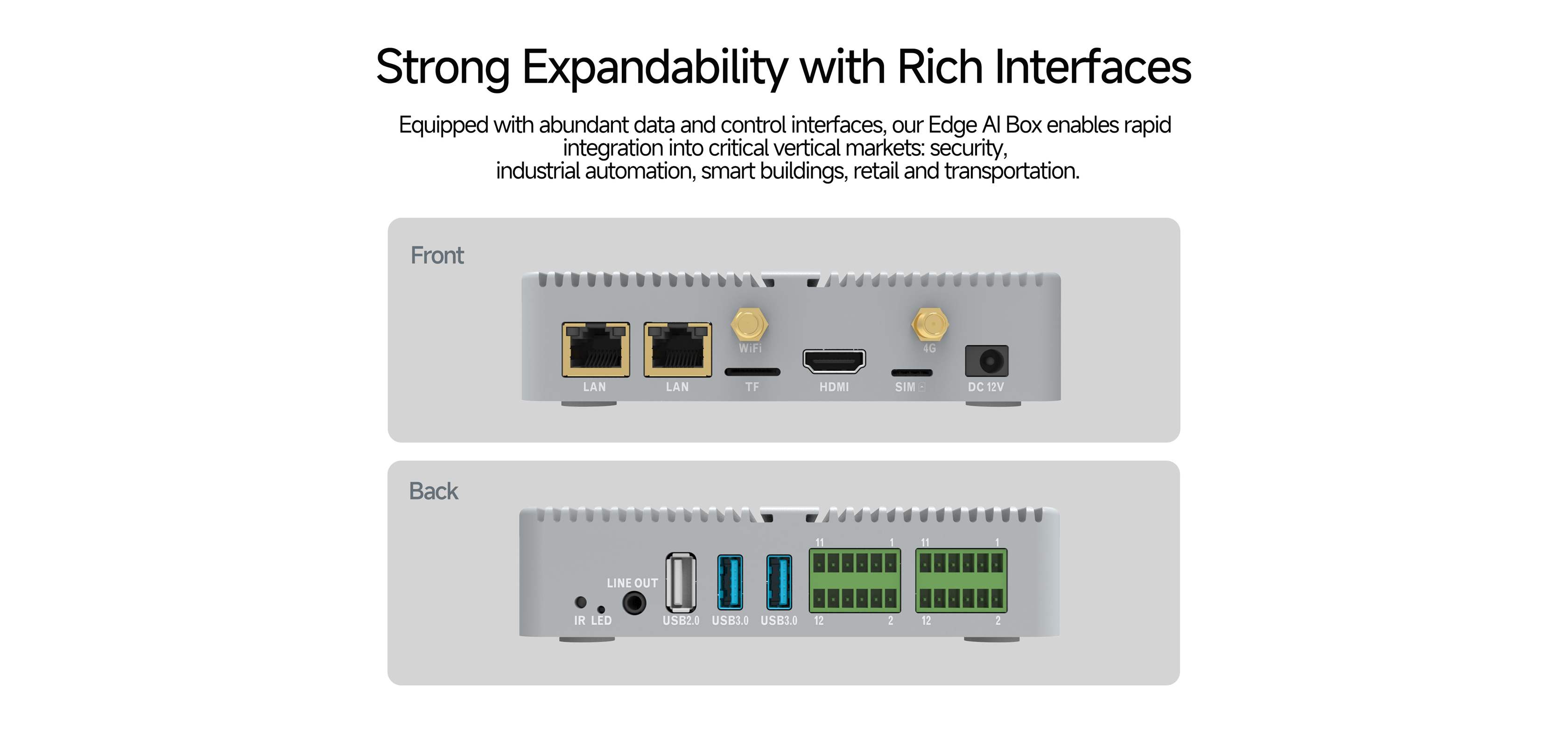

Peripheral Ports 2*TYPE-A USB3.0 , 1*TYPE-A USB2.0 port, 1*M2 (KEY M) port 2*RS485 , 2*RS232 , 2*CAN, 6*GPIO,2*RS485 serial(RS232 optional) 1*Line Out port, 1*SIM , 2*RS232 1*NANO-SIM card slot, 1*red/green indicator light, 1*infrared signal input

Power DC 12V

Operation Environment Working temperature: -20℃~40℃ Operation humidity: 30%-80%

Storage Environment Storage temperature: -25℃~70℃ Storage humidity: 30%-80%

Dimensions 136mm(L)*124.4mm(W)*32mm(H)
