Edge AI Box

SUNTEK SA7

Edge AI Box for Industrial IoT Applications

Real-time AI computing for smarter edge deployment.

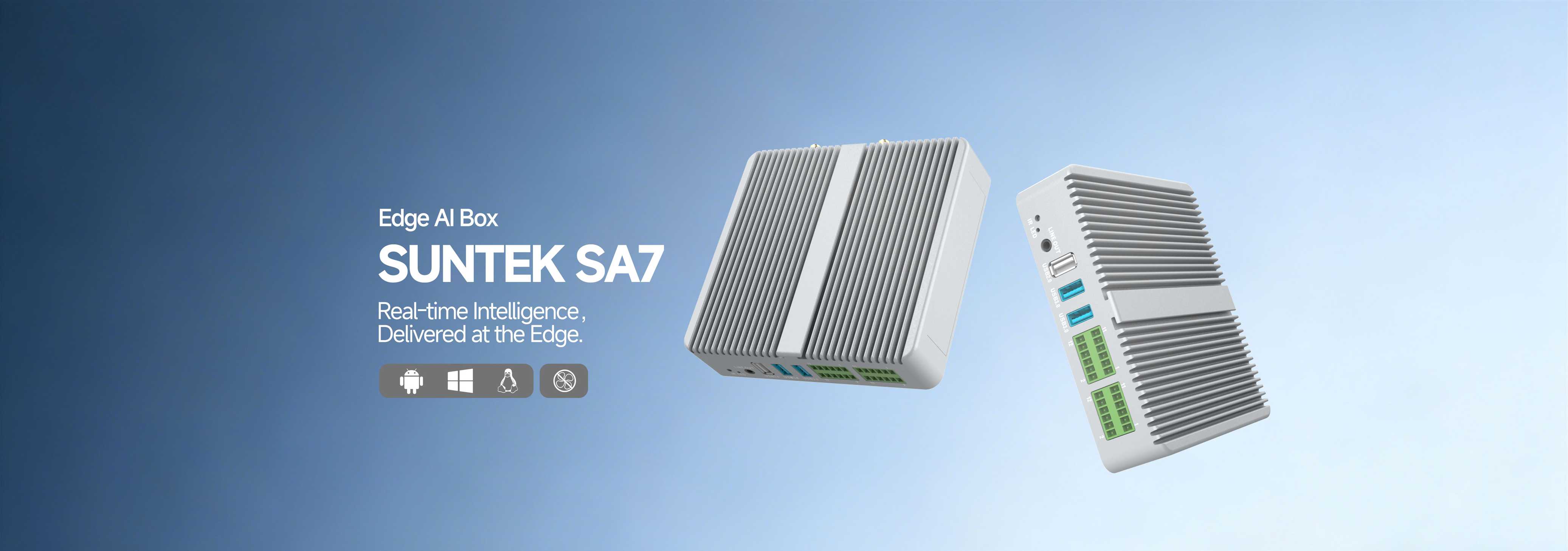

Suntek SA7 edge AI box shown in dual-angle view with fanless aluminum housing for industrial edge computing applications

Edge AI Performance for Industrial IoT Applications

The SUNTEK SA7 edge AI box delivers up to 6 TOPS AI performance for industrial IoT applications, ensuring stable and efficient edge computing across complex deployment environments.

Octa-core processor with integrated NPU for real-time AI processing
💾
4GB RAM + 64GB storage with 4K ultra HD output capability
🌡️
Wide temperature support with Android 14 and Wi-Fi 6 connectivity
Suntek SA7 edge AI box performance overview showing AI computing power RAM storage 4K output wide temperature support Android system and WiFi connectivity

Universal System Compatibility

Supports Android, Windows, and Linux for flexible deployment.

Suntek SA7 edge AI box supporting Android Windows and Linux operating systems for flexible system integration

Rich Interfaces for Integration

SA7 provides practical connectivity for industrial integration, device control, and edge deployment scenarios.

Front interface of Suntek SA7 edge AI box showing dual LAN ports HDMI TF card slot SIM slot and DC power input

Front Interfaces

  • Dual LAN
  • HDMI
  • TF card slot
  • SIM slot
  • DC 12V

Designed for reliable networking, display output, and flexible edge communication deployment.

Back interface of Suntek SA7 edge AI box with USB ports RS485 industrial IO terminals and audio output

Back Interfaces

  • USB 2.0
  • Dual USB 3.0
  • RS485
  • Industrial I/O terminals
  • Audio output
  • IR LED

Suitable for peripheral integration, industrial control, and broader edge computing connectivity.

Flexible Expansion for Diverse Edge Devices

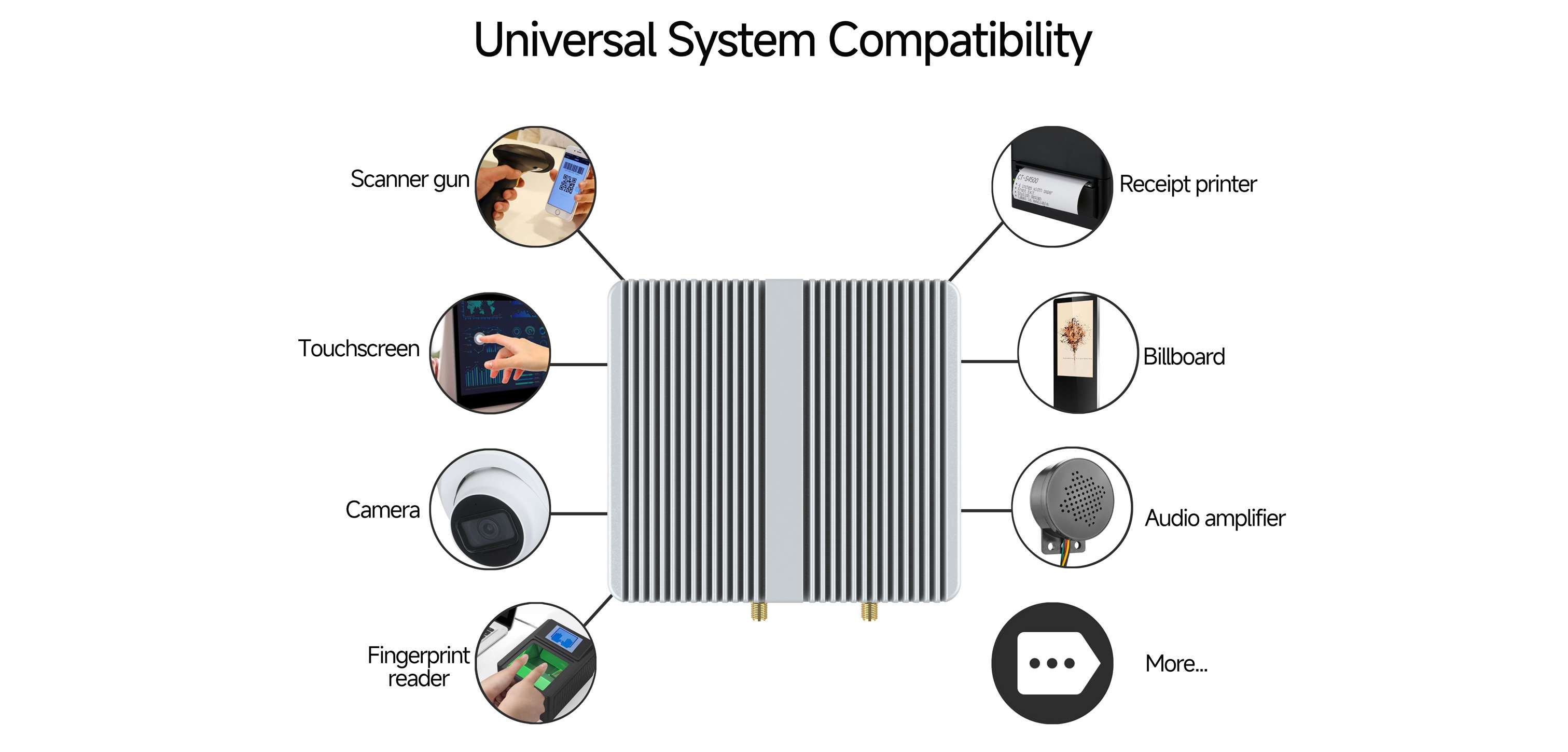

SA7 can connect with a wide range of peripheral devices including scanners, touchscreens, cameras, fingerprint readers, receipt printers, displays, and audio systems. This flexible expansion capability makes it suitable for smart retail, self-service terminals, access control, industrial operation, and other IoT edge applications that require coordinated device interaction.

Suntek SA7 edge AI box connecting with IoT devices including scanner touchscreen camera fingerprint reader printer display and audio system

FAQ

SA7 is an edge AI computing box that enables local AI processing, multi-device integration, and stable deployment across access control, kiosk, and video analytics scenarios.

SA7 is based on the RK3576 platform, featuring an octa-core processor with up to 2.2GHz performance.

No. SA7 adopts a fanless design.

SA7 delivers up to 6 TOPS AI computing performance.

Yes, sample units are available. Please contact SUNTEK sales team for details.

Need a Reliable Edge AI Box for Your Project?

Whether you are building an industrial IoT solution, integrating multiple edge devices, or evaluating the right hardware for your deployment, SUNTEK can support your project with professional product advice and matching recommendations.

SA7 Technical Specifications

Product model SA7
OS Android 14
Processor Octa-Core 2.2GHz
GPU Quad-core Mali-G52 MC3 OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Built-in high-performance 2D acceleration hardware
NPU 6 TOPS
Memory 4GB RAM+64GB ROM
Wi-Fi Wi-Fi 6, dual-band, Support 2.4G/5G Support 4G network(※)
Ethernet 10M/100M/1000M
Bluetooth Bluetooth5.4
Multimedia Supports 4K@120fps H.265/H.264/AV1/VP9/AVS2 video decoding Supports Dual 4K@30fps H.264/H.265 video encoding Supports 4K@30fps MIPG encoding and decoding
Display Ports 1 HDMI, HDMI Type-A, max supports 4096*2160@120Hz (output)
Peripheral Ports 2*TYPE-A USB3.0 , 1*TYPE-A USB2.0 port, 1*M2 (KEY M) port 2*RS485 , 2*RS232 , 2*CAN, 6*GPIO 1*Line Out port, 1*3.5mm headphone jack 1*NANO-SIM card slot, 1*red/green indicator light, 1*infrared signal input
Power DC 12V
Operation Environment Working temperature: -20℃~40℃ Operation humidity: 30%-80%
Storage Environment Storage temperature: -25℃~70℃ Storage humidity: 30%-80%
Dimensions 136mm(L)*124.4mm(W)*32mm(H)
